AHydraulics Rotary Actuator AHB-90
Product specifications
| Product Attributes | Test method | ||
|---|---|---|---|
| Material | Aluminium | ||
| Drive Torque (kg - m at 210 bar) | 105 | ||
| Holding Torque (kg - m at 210 bar) | 270 | ||
| Cantilever Mount (kg - m) | 324 | ||
| Axial Capacity (kg) | 680 | ||
| Displacement 180 degree (cm³) | 239 | ||
| Cylinder Size (Ø) | 90 | ||
Product Description
Ahydraulics Rotary Actuator AHB-90

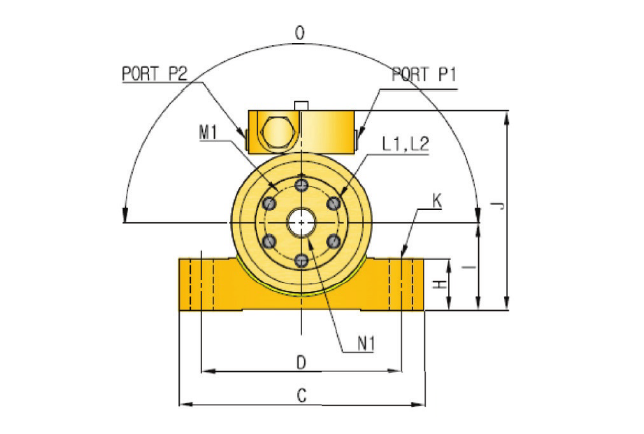

Request the 3D drawing
Working this component into your own design? Request the STEP file and we'll send it straight to your inbox
