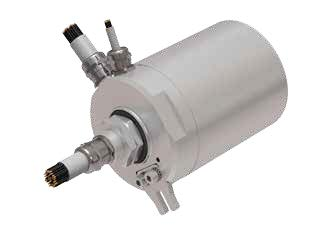

HBS Slip Ring S130 S0541049900
Product specifications
| Product Attributes | Test method | ||
|---|---|---|---|
| Cable Length (mt) | 2.50 | ||
| Wire section (mm) | 1.50 | ||
| Mounting Position | Vertical / Horizontal | ||
| IP-Protection | IP67 | ||
| Size | variable | ||
| Temperature Range (C) | -40 To 60 | ||
| Max. Rings | 50 | ||
| Suitable for | analog-to-digital and auxiliary power | ||
| Max Operating Voltage (Vac/Vdc) | 680 | ||
| Contact resistance Brushes / Rings | <20 mhom | ||
| Direction of Rotation | CW, CCW | ||
| Rated Current (A) | 16 | ||
| Cable ((mm²) L=2.5mt) | 1.50 | ||
| Max RPM | 12 | ||
| Output Type | Multipolar cable4G1.5 pur | ||
| Max Current Monofilament (A cont. loop) | 20 | ||
| Max Current Electrografite (A cont. loop) | 12 | ||
| Dimensions | Test method | ||
|---|---|---|---|
| Size Under Cover (mm) | 30 To 260 | ||
Product Description
SLIP RING ASSY 1 Earth+3 -16 AMP[wire]
