VIS Hydraulics CVC0.S16
Product specifications
| Product Attributes | Test method | ||
|---|---|---|---|
| Weight (Kg) | 0.29 | ||
| Installation torque (Nm) | 150 To 160 | ||
| Filtration | 20/18/15 ISO 4406 (maximum filtration admitted) | ||
| Orientation | Norestrictions | ||
| Oil Testing Conditions | ISOVG46cSt | ||
| Fluid | Mineral | ||
| Pressure Attributes | Test method | ||
|---|---|---|---|
| Max Pressure (Bar) | 350 | ||
| Flow Attributes | Test method | ||
|---|---|---|---|
| Max Flow (l/min) | 320 | ||
| Viscosities (cSt) | 7.4 To 420 | ||
| Internal Leakage @ 10 bar (cc/minute) | 0.10 | ||
Product Description

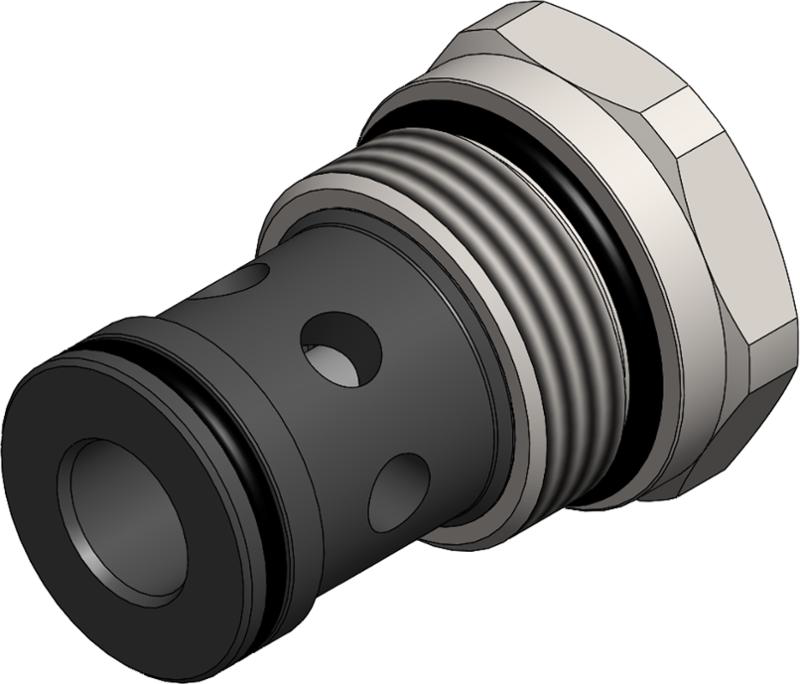

A screw-in, cartridge style, direct acting, poppet type check valve. Main use is as a blocking or load-holding device. The CVC0.S16allows flow passage from port 1 to 2: the cartridge has a fully guided check which is spring-biased closed until sufficient pressure isapplied at port 1 to open to 2. The flow is blocked in the opposite direction (2 to 1).
| Product | Spring Model Code | Cracking Pressure | Max Pressure Bar | Application |
|---|---|---|---|---|
| CVC0.S16.0B.000 | B | 3 | 350 | |
| CVC0.S16.0N.000 | N | 1 | 350 | |
| CVC0.S16.0P.000 | P | 5 | 350 | |
| CVC0.S16.0Y.000 | Y | 0.50 | 350 |
