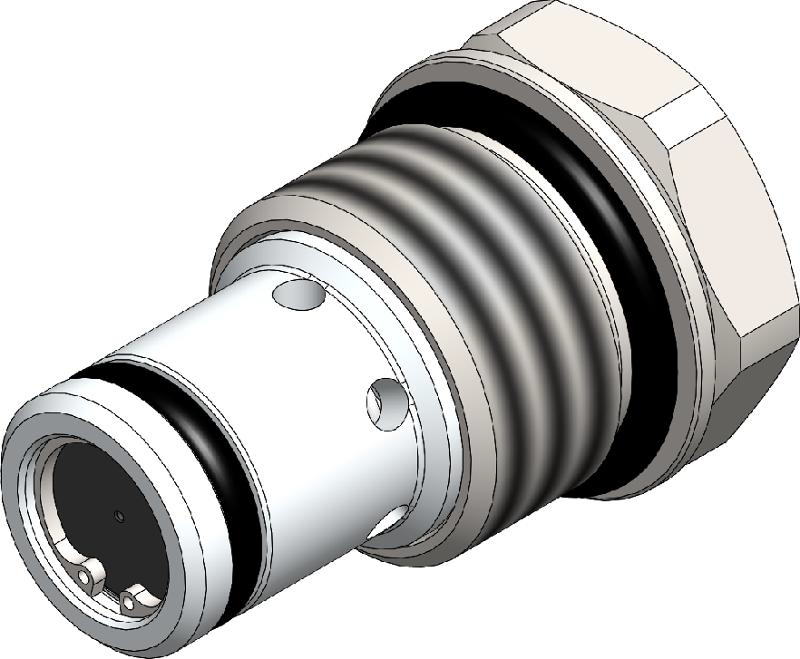

VIS Hydraulics FRC0.S10

Product specifications

Product Attributes			Test method
Weight (Kg)		0.09
Installation torque (Nm)		40 To 45
Filtration		20/18/15 ISO 4406 (maximum filtration admitted)
Orientation		Norestrictions
Oil Testing Conditions		ISOVG46cSt
Fluid		Mineral

Pressure Attributes			Test method
Max Pressure (Bar)		250

Flow Attributes			Test method
Max Flow (l/min)		20
Viscosities (cSt)		7.4 To 420

Product Description

A screw-in, cartridge style, direct acting, 2-way pressure compensated flow control valve. The flow rate of this valve in the 1 to 2flow path is largely independent of the system pressure and is determined by the dimension of a calibrated orifice. The valve cannotbe adjusted for variable flow output. Free flow in the 2 to 1 path is allowed and not pressure compensated.

Product	Fixed Flow Setting	Flow Setting Range l/min	Flow Setting Range l/min	Fixed Flow Setting	Max Pressure Bar

FRC0.S10.0N.025	25	2.50	2, 5	25	250
FRC0.S10.0N.030	30	3	3	30	250
FRC0.S10.0N.040	40	4	4	40	250
FRC0.S10.0N.050	50	5	5	50	250
FRC0.S10.0N.060	60	6	6	60	250
FRC0.S10.0N.070	70	7	7	70	250
FRC0.S10.0N.080	80	8	8	80	250
FRC0.S10.0N.090	90	9	9	90	250
FRC0.S10.0N.100	100	10	10	100	250
FRC0.S10.0N.110	110	11	11	110	250
FRC0.S10.0N.120	120	12	12	120	250
FRC0.S10.0N.150	150	16	16	150	250
FRC0.S10.0N.180	180	18	18	180	250
FRC0.S10.0N.200	200	20	20	200	250
