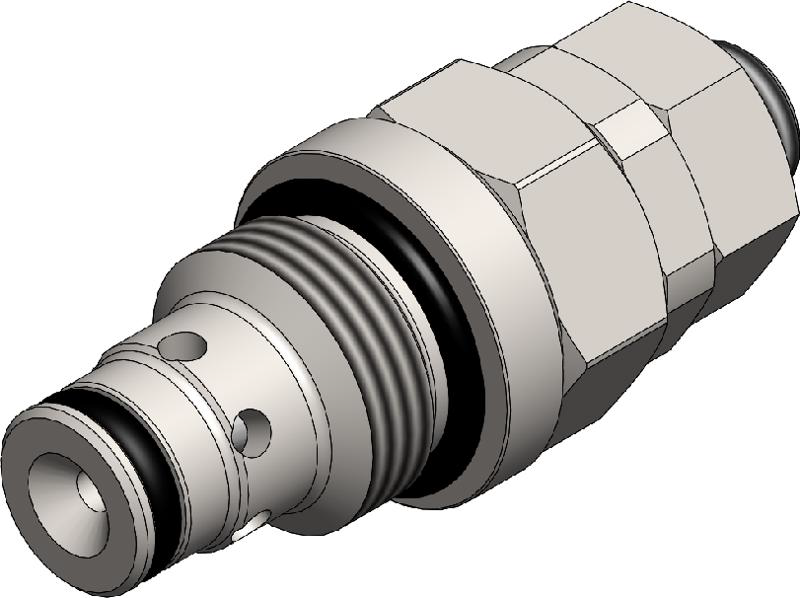

VIS Hydraulics FRT4.S08
Product specifications
| Product Attributes | Test method | ||
|---|---|---|---|
| Weight (Kg) | 0.10 | ||
| Installation torque (Nm) | 40 To 45 | ||
| Filtration | 20/18/15 ISO 4406 (maximum filtration admitted) | ||
| Orientation | Norestrictions | ||
| Oil Testing Conditions | ISOVG46cSt | ||
| Fluid | Mineral | ||
| Pressure Attributes | Test method | ||
|---|---|---|---|
| Max Pressure (Bar) | 350 | ||
| Tightening Torque | 15 To 45 | ||
| Flow Attributes | Test method | ||
|---|---|---|---|
| Max Flow (l/min) | 25 | ||
| Viscosities (cSt) | 7.4 To 420 | ||
Product Description
A cartridge style, screw in, non pressure compensated, adjustable flow restrictor valve. Once the flow is adjusted to desired value,both the 1 to 2 and 2 to 1 flow paths are permitted. Smaller sealing area for finer flow adjustment.
