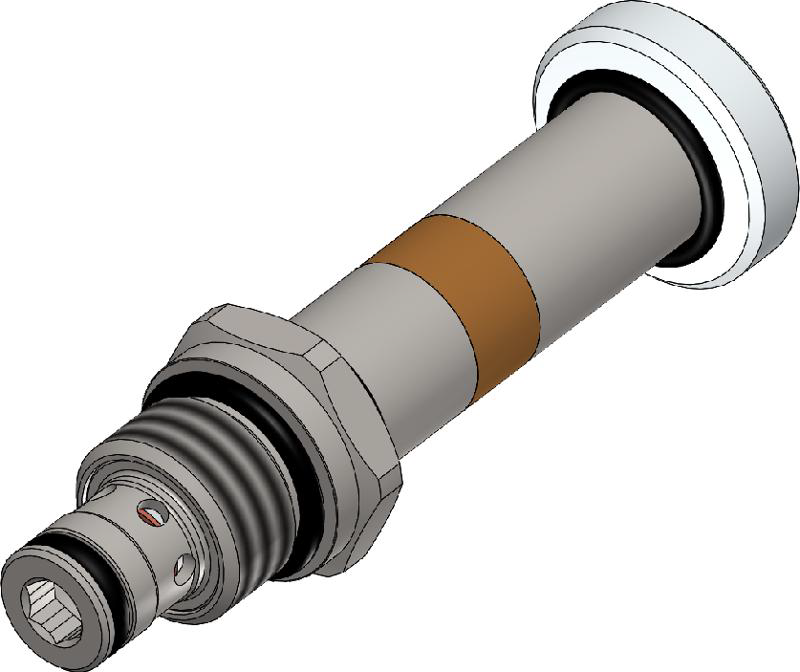

VIS Hydraulics PFR0.S08

Product specifications

Product Attributes			Test method
Weight (Kg)		0.15
Installation torque (Nm)		40 To 45
Filtration		20/18/15 ISO 4406 (maximum filtration admitted)
Orientation		Norestrictions
Oil Testing Conditions		ISOVG46cSt
Fluid		Mineral

Pressure Attributes			Test method
Max Pressure (Bar)		250

Flow Attributes			Test method
Max Flow (l/min)		30
Viscosities (cSt)		7.4 To 420
Internal Leakage @ 10 bar (cc/minute)		0.25

Product Description

The PFR0 is a proportional solenoid operated, twoway, poppet type, normally closed, screw-in hydraulic cartridge valve for lowleakage blocking and load-holding applications. When de-energized, the valve operates as a check valve and allows flow from 1 to2, while blocking flow from 2 to 1. When energized, the valve opens 2 to 1 flow path: flow is proportional to the current applied to thecoil.

Product	Filter Type	Option Code	Option Code	Override Type	Max Pressure Bar

PFR0.S08.00.F00	Standard filter (mesh size 280 μm)	S08	3/4-16 UNF with Ø12,7 nose size	No override	250
PFR0.S08.00.N00	No filter	S08	3/4-16 UNF with Ø12,7 nose size	No override	250
PFR0.S08.01.F00	Standard filter (mesh size 280 μm)	S08	3/4-16 UNF with Ø12,7 nose size	Screw	250
PFR0.S08.01.N00	No filter	S08	3/4-16 UNF with Ø12,7 nose size	Screw	250
PFR0.S08.02.F00	Standard filter (mesh size 280 μm)	S08	3/4-16 UNF with Ø12,7 nose size	Push and Twist	250
PFR0.S08.02.N00	No filter	S08	3/4-16 UNF with Ø12,7 nose size	Push and Twist	250
PFR0.S08.06.F00	Standard filter (mesh size 280 μm)	S08	3/4-16 UNF with Ø12,7 nose size	Pull and Hold (max. operating pressure: 300 bar)	250
PFR0.S08.06.N00	No filter	S08	3/4-16 UNF with Ø12,7 nose size	Pull and Hold (max. operating pressure: 300 bar)	250
PFR0.S08.09.F00	Standard filter (mesh size 280 μm)	S08	3/4-16 UNF with Ø12,7 nose size	Pull and Hold with screw 10-32 UNF (max. operating pressure: 300 bar)	250
PFR0.S08.09.N00	No filter	S08	3/4-16 UNF with Ø12,7 nose size	Pull and Hold with screw 10-32 UNF (max. operating pressure: 300 bar)	250
PFR0.S08.0A.F00	Standard filter (mesh size 280 μm)	S08	3/4-16 UNF with Ø12,7 nose size	Pull and Hold with screw M8 (max. operating pressure: 300 bar)	250
PFR0.S08.0A.N00	No filter	S08	3/4-16 UNF with Ø12,7 nose size	Pull and Hold with screw M8 (max. operating pressure: 300 bar)	250
