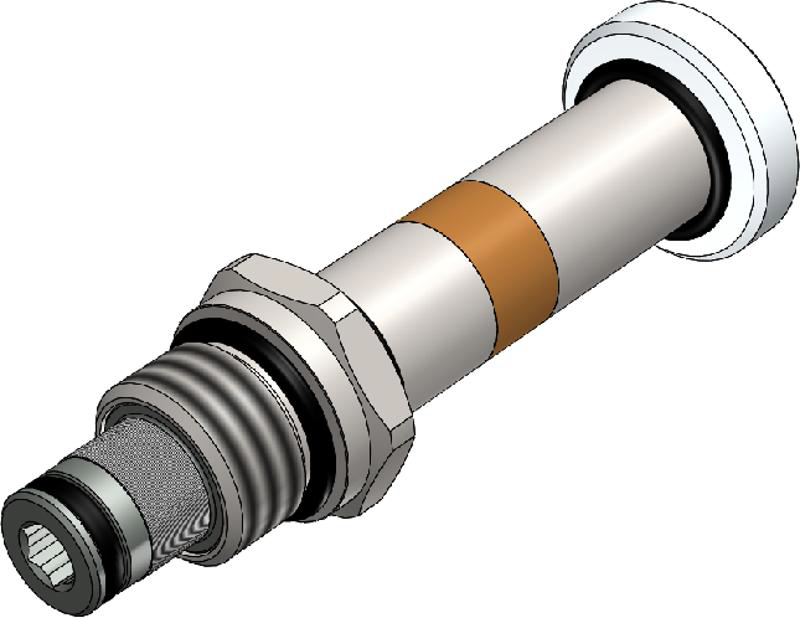

VIS Hydraulics PFRW.S08

Product specifications

Product Attributes			Test method
Weight (Kg)		0.15
Installation torque (Nm)		40 To 45
Filtration		20/18/15 ISO 4406 (maximum filtration admitted)
Orientation		Norestrictions
Oil Testing Conditions		ISOVG46cSt
Fluid		Mineral

Pressure Attributes			Test method
Max Pressure (Bar)		250

Flow Attributes			Test method
Max Flow (l/min)		30
Viscosities (cSt)		7.4 To 420

Product Description

The PFRW is a proportional solenoid operated, two way, poppet type, normally closed, screw-in hydraulic cartridge valve for lowleakage blocking and load-holding applications. When de-energized, the valve operates as a check valve and allows flow from 1 to2, while blocking flow from 2 to 1. When energized, the valve opens 2 to 1 flow path: flow is proportional to the current applied to thecoil. The adjusting screw allows to change start/end current of flow regulation. Its trend stays the same; start and finish point moveleft and right on the current axis.

Product	Filter Type	Option Code	Option Code	Override Type	Max Pressure Bar

PFRW.S08.00.F00	Standard filter (mesh size 280 μm)	S08	3/4-16 UNF with Ø12,7 nose size	No override	250
PFRW.S08.00.N00	No filter	S08	3/4-16 UNF with Ø12,7 nose size	No override	250
PFRW.S08.01.F00	Standard filter (mesh size 280 μm)	S08	3/4-16 UNF with Ø12,7 nose size	Screw	250
PFRW.S08.01.N00	No filter	S08	3/4-16 UNF with Ø12,7 nose size	Screw	250
PFRW.S08.02.F00	Standard filter (mesh size 280 μm)	S08	3/4-16 UNF with Ø12,7 nose size	Push and Twist	250
PFRW.S08.02.N00	No filter	S08	3/4-16 UNF with Ø12,7 nose size	Push and Twist	250
PFRW.S08.06.F00	Standard filter (mesh size 280 μm)	S08	3/4-16 UNF with Ø12,7 nose size	Pull and Hold (max. operating pressure: 300 bar)	250
PFRW.S08.06.N00	No filter	S08	3/4-16 UNF with Ø12,7 nose size	Pull and Hold (max. operating pressure: 300 bar)	250
PFRW.S08.09.F00	Standard filter (mesh size 280 μm)	S08	3/4-16 UNF with Ø12,7 nose size	Pull and Hold with screw 10-32 UNF (max. operating pressure: 300 bar)	250
PFRW.S08.09.N00	No filter	S08	3/4-16 UNF with Ø12,7 nose size	Pull and Hold with screw 10-32 UNF (max. operating pressure: 300 bar)	250
PFRW.S08.0A.F00	Standard filter (mesh size 280 μm)	S08	3/4-16 UNF with Ø12,7 nose size	Pull and Hold with screw M8 (max. operating pressure: 300 bar)	250
PFRW.S08.0A.N00	No filter	S08	3/4-16 UNF with Ø12,7 nose size	Pull and Hold with screw M8 (max. operating pressure: 300 bar)	250
