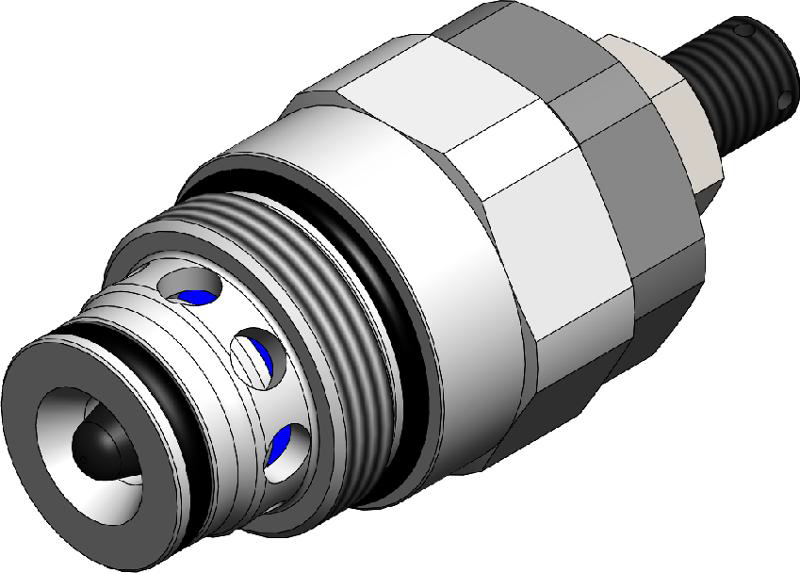

VIS Hydraulics RVB0.M24
Product specifications
| Product Attributes | Test method | ||
|---|---|---|---|
| Weight (Kg) | 0.16 | ||
| Installation torque (Nm) | 40 To 45 | ||
| Filtration | 20/18/15 ISO 4406 (maximum filtration admitted) | ||
| Orientation | Norestrictions | ||
| Oil Testing Conditions | ISOVG46cSt | ||
| Fluid | Mineral | ||
| Pressure Attributes | Test method | ||
|---|---|---|---|
| Max Pressure (Bar) | 300 | ||
| Tightening Torque | 10 To 12 | ||
| Flow Attributes | Test method | ||
|---|---|---|---|
| Max Flow (l/min) | 85 | ||
| Viscosities (cSt) | 7.4 To 420 | ||
Product Description
A screw-in, cartridge style, direct acting, poppet type, normally closed hydraulic relief valve. It’s typically used to protect hydrauliccomponents from pressure transients. When the pressure at the Inlet (1) reaches the valve setting, the valve starts to open to tank(2) and thanks to the effect of the deflector integrated into the poppet it provides a limited pressure rise. The cartridge offersexcellent response to load changes in hydraulic circuits requiring low internal leakage as well as limited hysteresis. Innovativedesign on internal dampening part guarantees great stability.
