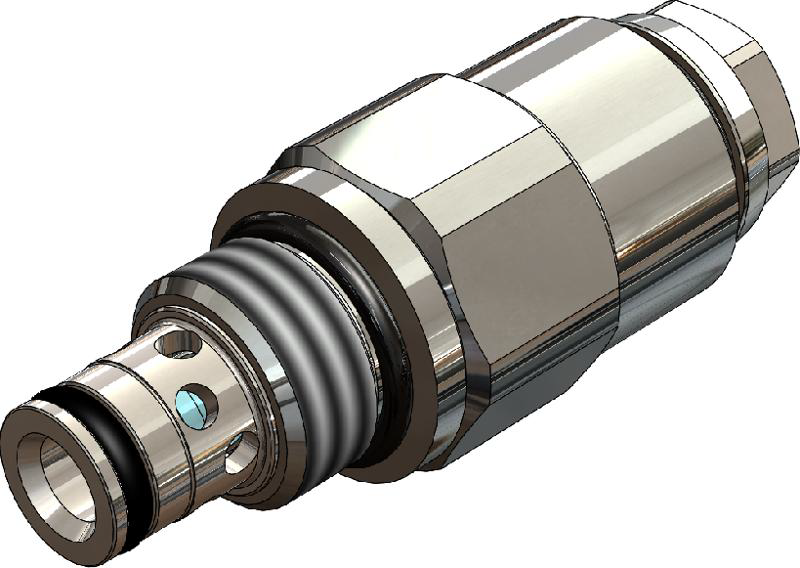

VIS Hydraulics RVI0.S08
Product specifications
| Product Attributes | Test method | ||
|---|---|---|---|
| Weight (Kg) | 0.18 | ||
| Installation torque (Nm) | 40 To 45 | ||
| Filtration | 20/18/15 ISO 4406 (maximum filtration admitted) | ||
| Orientation | Norestrictions | ||
| Oil Testing Conditions | ISOVG46cSt | ||
| Fluid | Mineral | ||
| Pressure Attributes | Test method | ||
|---|---|---|---|
| Max Pressure (Bar) | 350 | ||
| Tightening Torque | 10 To 15 | ||
| Flow Attributes | Test method | ||
|---|---|---|---|
| Max Flow (l/min) | 30 | ||
| Viscosities (cSt) | 7.4 To 420 | ||
Product Description
A screw-in, cartrigde style, direct acting, poppet type, normally closed hydraulic bi-directional relief valve. It's typically used toprotect hydraulic components from pressure transients. The RVI valve blocks flow from either port 1 or port 2. When the pressuredifferential between ports 1 and 2 reaches the valve setting, the valve starts to open, throttling flow to minimize the pressure rise,regardless of the inlet flow direction. Both directions have very similar setting pressure performance. The cartridge offers excellentresponse to load changes in hydraulic circuits requiring low internal leakage as well as limited hysteresis.
