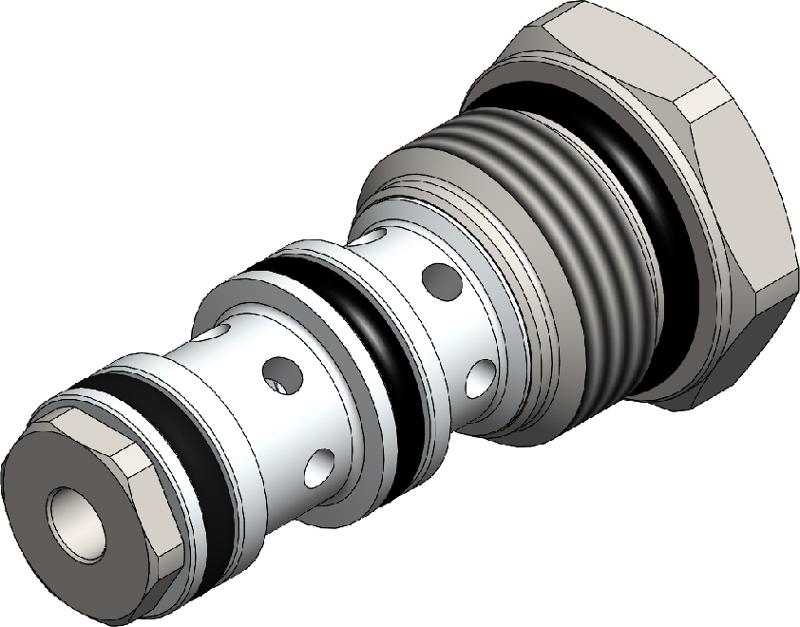

VIS Hydraulics SHC0.S08
Product specifications
| Product Attributes | Test method | ||
|---|---|---|---|
| Weight (Kg) | 0.07 | ||
| Installation torque (Nm) | 35 To 40 | ||
| Filtration | 20/18/15 ISO 4406 (maximum filtration admitted) | ||
| Orientation | Norestrictions | ||
| Oil Testing Conditions | ISOVG46cSt | ||
| Fluid | Mineral | ||
| Pressure Attributes | Test method | ||
|---|---|---|---|
| Max Pressure (Bar) | 210 | ||
| Flow Attributes | Test method | ||
|---|---|---|---|
| Max Flow (l/min) | 20 | ||
| Viscosities (cSt) | 7.4 To 420 | ||
Product Description
Shut-off valves for hydraulics systems, with two inlets and one outlet. Ball seat construction, automatic switching. The inlet with thehigher pressure (port 1 or 3) is directly connected to tank (port 2), while the second inlet (port 3 or 1) is shut off.
