VIS Hydraulics SQC0.M22
Product specifications
| Product Attributes | Test method | ||
|---|---|---|---|
| Weight (Kg) | 0.33 | ||
| Installation torque (Nm) | 45 To 50 | ||
| Filtration | 20/18/15 ISO 4406 (maximum filtration admitted) | ||
| Orientation | Norestrictions | ||
| Oil Testing Conditions | ISOVG46cSt | ||
| Fluid | Mineral | ||
| Pressure Attributes | Test method | ||
|---|---|---|---|
| Max Pressure (Bar) | 300 | ||
| Tightening Torque | 13 To 50 | ||
| Flow Attributes | Test method | ||
|---|---|---|---|
| Max Flow (l/min) | 40 | ||
| Viscosities (cSt) | 7.4 To 420 | ||
Product Description

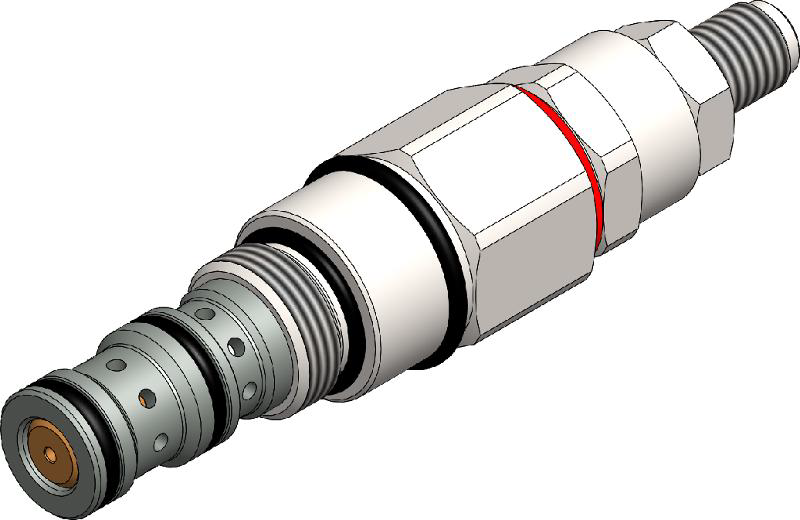

The SQC0.M22 is a screw in, cartridge style, direct acting, spool type hydraulic sequence valve with external pilot. Spring chamberis constantly air vented. The valve is designed to close flow connection between two ports that were previously connected. In theidle condition, the SCQ0.M22 allows flow to pass from 2 to 3. Once pilot pressure at 1 attains the spring setting the spool shifts andblocks flow between ports 2 and 3.
| Product | Spring Model Code | Setting Pressure Range Bar | Setting Pressure Range Bar | Max Pressure Bar | Application |
|---|---|---|---|---|---|
| SQC0.M22.0Y.000 | Y | 15 To 60 | 15 - 60 | 300 |
