VIS Hydraulics SV10.S08

Product specifications

Product Attributes			Test method
Weight (Kg)		0.12
Installation torque (Nm)		40 To 45
Filtration		20/18/15 ISO 4406 (maximum filtration admitted)
Orientation		Norestrictions
Oil Testing Conditions		ISOVG46cSt
Fluid		Mineral

Pressure Attributes			Test method
Max Pressure (Bar)		350

Flow Attributes			Test method
Max Flow (l/min)		40
Viscosities (cSt)		7.4 To 420

Product Description

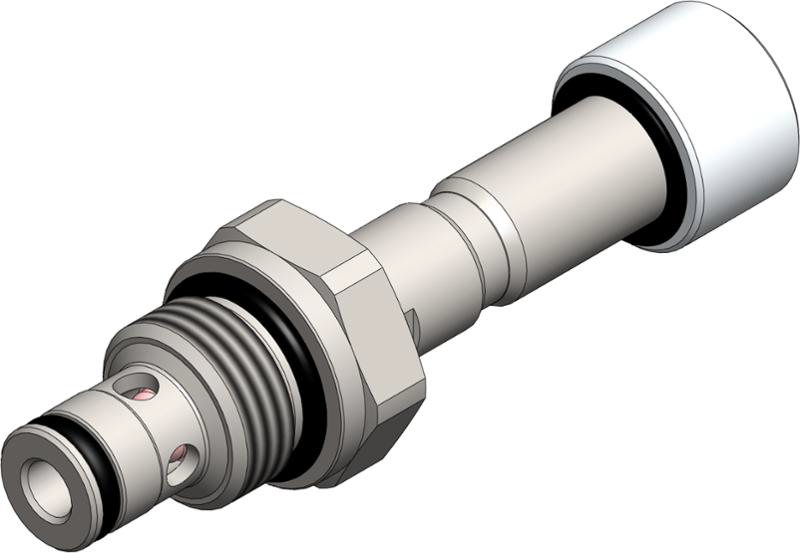

Solenoid operated, 2-way 2-positions, normally open, piloted poppet type, screw-in cartridge valve. Typically used as a blocking orload holding device for high pressure circuits. When the coil is de-energized, the SV10.S08 allows flow bidirectionally from 2 to 1,and from 1 to 2. When the coil is energized the valve closes, blocking flow from 2 to 1. In this mode, flow from 1 to 2 is allowed oncethe pressure overcomes the force of the solenoid. The rigid design using a 1-piece body contributes to minimize the effect ofeccentricities in cavity and provides great reliability. Low pressure drop thanks to optimized flow path.

Product	Filter Type	Option Code	Option Code	Override Type	Max Pressure Bar

SV10.M20.00.F00	No filter	M20	METRIC M20x1,5 with Ø15 nose size	No override	350
SV10.M20.00.N00	Standard filter (mesh size 280 μm)	M20	METRIC M20x1,5 with Ø15 nose size	No override	350
SV10.M20.02.F00	No filter	M20	METRIC M20x1,5 with Ø15 nose size	Push and Twist	350
SV10.M20.02.N00	Standard filter (mesh size 280 μm)	M20	METRIC M20x1,5 with Ø15 nose size	Push and Twist	350
SV10.M20.03.F00	No filter	M20	METRIC M20x1,5 with Ø15 nose size	Push pin	350
SV10.M20.03.N00	Standard filter (mesh size 280 μm)	M20	METRIC M20x1,5 with Ø15 nose size	Push pin	350
SV10.M20.04.F00	No filter	M20	METRIC M20x1,5 with Ø15 nose size	Push knob	350
SV10.M20.04.N00	Standard filter (mesh size 280 μm)	M20	METRIC M20x1,5 with Ø15 nose size	Push knob	350
SV10.M20.08.F00	No filter	M20	METRIC M20x1,5 with Ø15 nose size	Screw	350
SV10.M20.08.N00	Standard filter (mesh size 280 μm)	M20	METRIC M20x1,5 with Ø15 nose size	Screw	350
SV10.S08.00.F00	No filter	S08	3/4-16 UNF with Ø12,7 nose size	No override	350
SV10.S08.00.N00	Standard filter (mesh size 280 μm)	S08	3/4-16 UNF with Ø12,7 nose size	No override	350
SV10.S08.02.F00	No filter	S08	3/4-16 UNF with Ø12,7 nose size	Push and Twist	350
SV10.S08.02.N00	Standard filter (mesh size 280 μm)	S08	3/4-16 UNF with Ø12,7 nose size	Push and Twist	350
SV10.S08.03.F00	No filter	S08	3/4-16 UNF with Ø12,7 nose size	Push pin	350
SV10.S08.03.N00	Standard filter (mesh size 280 μm)	S08	3/4-16 UNF with Ø12,7 nose size	Push pin	350
SV10.S08.04.F00	No filter	S08	3/4-16 UNF with Ø12,7 nose size	Push knob	350
SV10.S08.04.N00	Standard filter (mesh size 280 μm)	S08	3/4-16 UNF with Ø12,7 nose size	Push knob	350
SV10.S08.08.F00	No filter	S08	3/4-16 UNF with Ø12,7 nose size	Screw	350
SV10.S08.08.N00	Standard filter (mesh size 280 μm)	S08	3/4-16 UNF with Ø12,7 nose size	Screw	350
SV10.S09.00.F00	No filter	S09	3/4-16 UNF with Ø15,86 nose size	No override	350
SV10.S09.00.N00	Standard filter (mesh size 280 μm)	S09	3/4-16 UNF with Ø15,86 nose size	No override	350
SV10.S09.02.F00	No filter	S09	3/4-16 UNF with Ø15,86 nose size	Push and Twist	350
SV10.S09.02.N00	Standard filter (mesh size 280 μm)	S09	3/4-16 UNF with Ø15,86 nose size	Push and Twist	350
SV10.S09.03.F00	No filter	S09	3/4-16 UNF with Ø15,86 nose size	Push pin	350
SV10.S09.03.N00	Standard filter (mesh size 280 μm)	S09	3/4-16 UNF with Ø15,86 nose size	Push pin	350
SV10.S09.04.F00	No filter	S09	3/4-16 UNF with Ø15,86 nose size	Push knob	350
SV10.S09.04.N00	Standard filter (mesh size 280 μm)	S09	3/4-16 UNF with Ø15,86 nose size	Push knob	350
SV10.S09.08.F00	No filter	S09	3/4-16 UNF with Ø15,86 nose size	Screw	350
SV10.S09.08.N00	Standard filter (mesh size 280 μm)	S09	3/4-16 UNF with Ø15,86 nose size	Screw	350

Request the 3D drawing

Working this component into your own design? Request the STEP file and we'll send it straight to your inbox

Request 3D drawing
