VIS Hydraulics SV20.S08

Product specifications

Characteristics			Test method
Materiaal

Product Attributes			Test method
Weight (Kg)		0.12
Installation torque (Nm)		40 To 45
Filtration		20/18/15 ISO 4406 (maximum filtration admitted)
Orientation		Norestrictions
Oil Testing Conditions		ISOVG46cSt
Fluid		Mineral

Pressure Attributes			Test method
Max Pressure (Bar)		350

Flow Attributes			Test method
Max Flow (l/min)		40
Viscosities (cSt)		7.4 To 420

Product Description

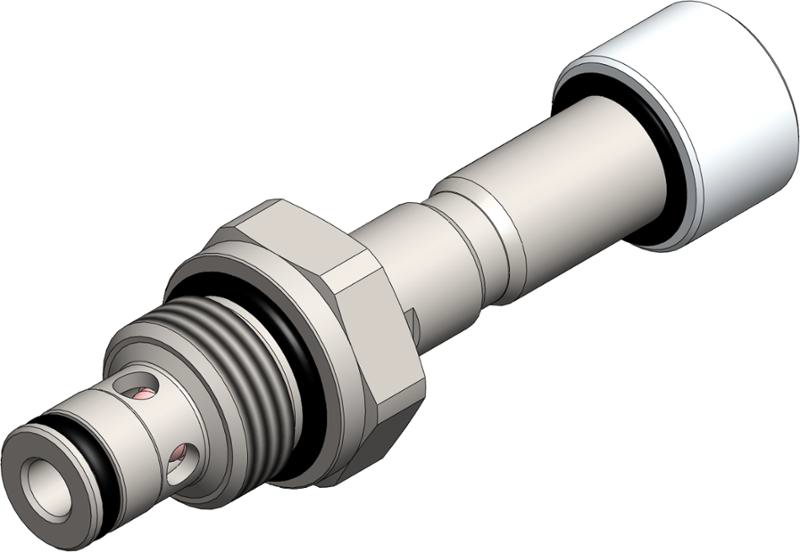

A solenoid valve operated, 2-way 2-positions, normally closed, piloted poppet type, bi-directional blocking, screw-in cartridge valve. Special design for low leakage in load holding applications. Tipically used as a blocking or load holding device for high pressure circuits. When the coil is de-energized, the SVZ0.S08 blocks flow in both directions. Once the coil is energized, the valve’s poppet opens and allows free flow from 1 to 2 and from 2 to 1. The rigid design using a 1-piece body contributes to minimize the effect of eccentricities in cavity and provides great reliability. Low pressure drop thanks to optimized flow path.

Product	Filter Type	Option Code	Option Code	Override Type	Max Pressure Bar

SV20.M20.00.F00	No filter	M20	METRIC M20x1,5 with Ø15 nose size	No override	350
SV20.M20.00.N00	Standard filter (mesh size 280 μm)	M20	METRIC M20x1,5 with Ø15 nose size	No override	350
SV20.M20.02.F00	No filter	M20	METRIC M20x1,5 with Ø15 nose size	Push and Twist	350
SV20.M20.02.N00	Standard filter (mesh size 280 μm)	M20	METRIC M20x1,5 with Ø15 nose size	Push and Twist	350
SV20.M20.03.F00	No filter	M20	METRIC M20x1,5 with Ø15 nose size	Push pin	350
SV20.M20.03.N00	Standard filter (mesh size 280 μm)	M20	METRIC M20x1,5 with Ø15 nose size	Push pin	350
SV20.M20.04.F00	No filter	M20	METRIC M20x1,5 with Ø15 nose size	Push knob	350
SV20.M20.04.N00	Standard filter (mesh size 280 μm)	M20	METRIC M20x1,5 with Ø15 nose size	Push knob	350
SV20.M20.08.F00	No filter	M20	METRIC M20x1,5 with Ø15 nose size	Screw	350
SV20.M20.08.N00	Standard filter (mesh size 280 μm)	M20	METRIC M20x1,5 with Ø15 nose size	Screw	350
SV20.S08.00.F00	No filter	S08	3/4-16 UNF with Ø12,7 nose size	No override	350
SV20.S08.00.N00	Standard filter (mesh size 280 μm)	S08	3/4-16 UNF with Ø12,7 nose size	No override	350
SV20.S08.02.F00	No filter	S08	3/4-16 UNF with Ø12,7 nose size	Push and Twist	350
SV20.S08.02.N00	Standard filter (mesh size 280 μm)	S08	3/4-16 UNF with Ø12,7 nose size	Push and Twist	350
SV20.S08.03.F00	No filter	S08	3/4-16 UNF with Ø12,7 nose size	Push pin	350
SV20.S08.03.N00	Standard filter (mesh size 280 μm)	S08	3/4-16 UNF with Ø12,7 nose size	Push pin	350
SV20.S08.04.F00	No filter	S08	3/4-16 UNF with Ø12,7 nose size	Push knob	350
SV20.S08.04.N00	Standard filter (mesh size 280 μm)	S08	3/4-16 UNF with Ø12,7 nose size	Push knob	350
SV20.S08.08.F00	No filter	S08	3/4-16 UNF with Ø12,7 nose size	Screw	350
SV20.S08.08.N00	Standard filter (mesh size 280 μm)	S08	3/4-16 UNF with Ø12,7 nose size	Screw	350
SV20.S09.00.F00	No filter	S09	3/4-16 UNF with Ø15,86 nose size	No override	350
SV20.S09.00.N00	Standard filter (mesh size 280 μm)	S09	3/4-16 UNF with Ø15,86 nose size	No override	350
SV20.S09.02.F00	No filter	S09	3/4-16 UNF with Ø15,86 nose size	Push and Twist	350
SV20.S09.02.N00	Standard filter (mesh size 280 μm)	S09	3/4-16 UNF with Ø15,86 nose size	Push and Twist	350
SV20.S09.03.F00	No filter	S09	3/4-16 UNF with Ø15,86 nose size	Push pin	350
SV20.S09.03.N00	Standard filter (mesh size 280 μm)	S09	3/4-16 UNF with Ø15,86 nose size	Push pin	350
SV20.S09.04.F00	No filter	S09	3/4-16 UNF with Ø15,86 nose size	Push knob	350
SV20.S09.04.N00	Standard filter (mesh size 280 μm)	S09	3/4-16 UNF with Ø15,86 nose size	Push knob	350
SV20.S09.08.F00	No filter	S09	3/4-16 UNF with Ø15,86 nose size	Screw	350
SV20.S09.08.N00	Standard filter (mesh size 280 μm)	S09	3/4-16 UNF with Ø15,86 nose size	Screw	350

Request the 3D drawing

Working this component into your own design? Request the STEP file and we'll send it straight to your inbox

Request 3D drawing
