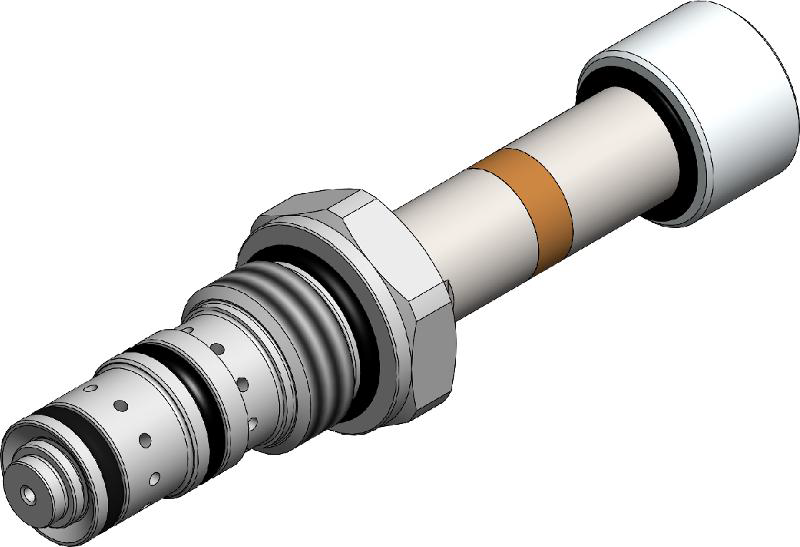

VIS Hydraulics SVC0.S08
Product specifications
| Product Attributes | Test method | ||
|---|---|---|---|
| Weight (Kg) | 0.14 | ||
| Installation torque (Nm) | 35 To 40 | ||
| Filtration | 20/18/15 ISO 4406 (maximum filtration admitted) | ||
| Orientation | Norestrictions | ||
| Oil Testing Conditions | ISOVG46cSt | ||
| Fluid | Mineral | ||
| Pressure Attributes | Test method | ||
|---|---|---|---|
| Max Pressure (Bar) | 250 | ||
| Flow Attributes | Test method | ||
|---|---|---|---|
| Max Flow (l/min) | 10 | ||
| Viscosities (cSt) | 7.4 To 420 | ||
Product Description
A solenoid valve operated, 3 way 2 positions, seated type, direct acting, screw-in hydraulic directional cartridge valve. In the deenergizedmode, the SVC0.S08 allows flow bidirectionally between ports 2 and 3, while blocking flow at 1. In this stage theleakage on port 1 is very limited. As soon as the coil is energized there is a transitory phase in which all the ports are connected.In the energized mode, bidirectional flow is allowed between ports 1 and 2, while flow is blocked at 3 with a low leakage. Therigid design using a 1-piece body contributes to minimize the effect of eccentricities in cavity and provides great reliability. Lowpressure drop thanks to optimized flow path.
