VIS Hydraulics SVD0.S10
Product specifications
| Product Attributes | Test method | ||
|---|---|---|---|
| Weight (Kg) | 0.23 | ||
| Installation torque (Nm) | 45 To 50 | ||
| Filtration | 20/18/15 ISO 4406 (maximum filtration admitted) | ||
| Orientation | Norestrictions | ||
| Oil Testing Conditions | ISOVG46cSt | ||
| Fluid | Mineral | ||
| Pressure Attributes | Test method | ||
|---|---|---|---|
| Max Pressure (Bar) | 250 | ||
| Flow Attributes | Test method | ||
|---|---|---|---|
| Max Flow (l/min) | 35 | ||
| Viscosities (cSt) | 7.4 To 420 | ||
Product Description

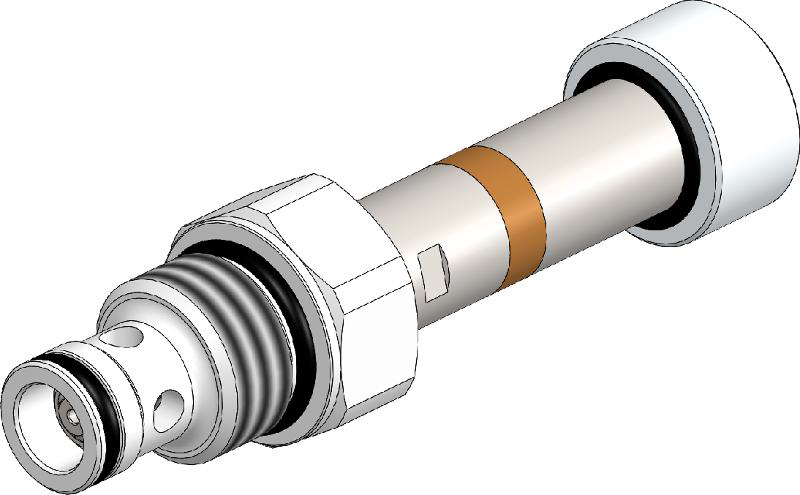

A solenoid valve operated, 2-way 2-positions, normally closed, direct acting poppet type, bi-directional blocking, screwin cartridgevalve. Special design for low leakage in load holding applications. When the coil is de-energized, the SVD0.S10 blocks flow in bothdirections. Once the coil is energized, the valve’s poppet opens and allows free flow from 1 to 2 and from 2 to 1. The rigid designusing a 1-piece body contributes to minimize the effect of eccentricities in cavity and provides great reliability. Low pressure dropthanks to optimized flow path.
