VIS Hydraulics SVI0.S08
Product specifications
| Product Attributes | Test method | ||
|---|---|---|---|
| Weight (Kg) | 0.23 | ||
| Installation torque (Nm) | 35 To 40 | ||
| Filtration | 20/18/15 ISO 4406 (maximum filtration admitted) | ||
| Orientation | Norestrictions | ||
| Oil Testing Conditions | ISOVG46cSt | ||
| Fluid | Mineral | ||
| Pressure Attributes | Test method | ||
|---|---|---|---|
| Max Pressure (Bar) | 250 | ||
| Flow Attributes | Test method | ||
|---|---|---|---|
| Max Flow (l/min) | 10 | ||
| Viscosities (cSt) | 7.4 To 420 | ||
Product Description

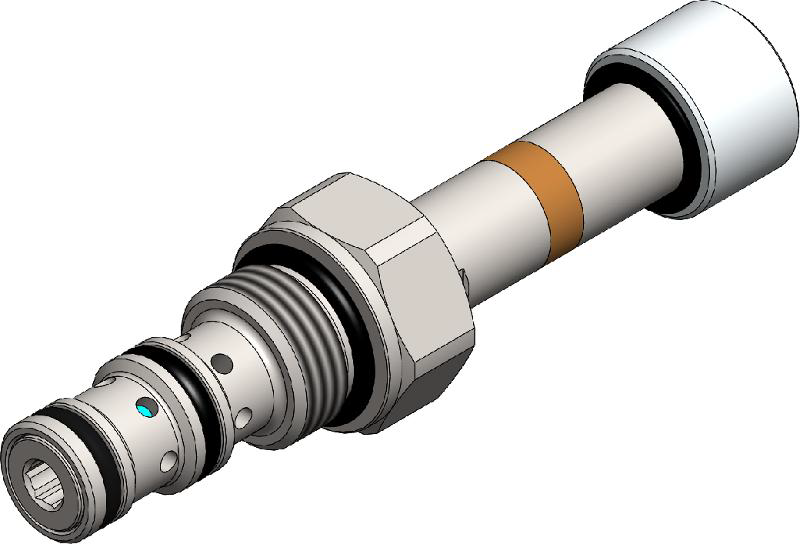

A solenoid valve operated, 3 way 2 positions, seated type, direct acting, bi-directional blocking, screw-in hydraulic directional cartridge valve.In the de-energized mode, the SVI0.S08 allows flow bi-directionally between ports 1 and 2, while blocking flow at 3. In the energized mode,bi-directional flow is allowed between ports 3 and 2, while flow is blocked at 1 with extremely low leakage. Even if port 1 and 3 may be fullypressurized they are not intended to be used as the inlet. The rigid design using a 1-piece body contributes to minimize the effect ofeccentricities in cavity and provides great reliability. Low pressure drop thanks to optimized flow path.
| Product | Override Type | Max Pressure Bar | Application |
|---|---|---|---|
| SVI0.S08.00.000 | No override | 250 | |
| SVI0.S08.03.000 | Push pin | 250 | |
| SVI0.S08.04.000 | Push knob | 250 | |
| SVI0.S08.08.000 | Screw | 250 |
