VIS Hydraulics SVJ0.S10
Product specifications
| Product Attributes | Test method | ||
|---|---|---|---|
| Weight (Kg) | 0.16 | ||
| Installation torque (Nm) | 65 To 75 | ||
| Filtration | 20/18/15 ISO 4406 (maximum filtration admitted) | ||
| Orientation | Norestrictions | ||
| Oil Testing Conditions | ISOVG46cSt | ||
| Fluid | Mineral | ||
| Pressure Attributes | Test method | ||
|---|---|---|---|
| Max Pressure (Bar) | 350 | ||
| Flow Attributes | Test method | ||
|---|---|---|---|
| Max Flow (l/min) | 80 | ||
| Viscosities (cSt) | 7.4 To 420 | ||
Product Description

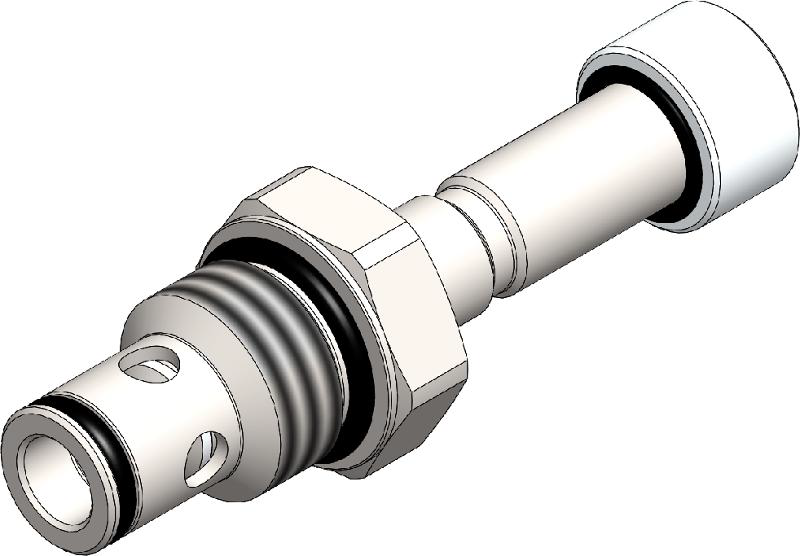

A solenoid valve operated, 2-way 2-positions, normally open, piloted poppet type, screw-in cartridge valve. Typically used as ablocking or load holding device for high pressure circuits. When the coil is de-energized, the SVJ0.S10 allows flow from 2 to 1, whileflow from 1 to 2 is severely restricted. When the coil is energized the valve closes, blocking flow from 2 to 1. In this mode, flow from1 to 2 is allowed once the pressure overcomes the force of the solenoid. The rigid design using a 1-piece body contributes tominimize the effect of eccentricities in cavity and provides great reliability. Low pressure drop thanks to optimized flow path.
