VIS Hydraulics SVP0.M18.00.400
Product specifications
| Product Attributes | Test method | ||
|---|---|---|---|
| Weight (Kg) | 0.11 | ||
| Installation torque (Nm) | 10 To 15 | ||
| Filtration | 20/18/15 ISO 4406 (maximum filtration admitted) | ||
| Orientation | Norestrictions | ||
| Oil Testing Conditions | ISOVG46cSt | ||
| Fluid | Mineral | ||
| Pressure Attributes | Test method | ||
|---|---|---|---|
| Max Pressure (Bar) | 210 | ||
| Flow Attributes | Test method | ||
|---|---|---|---|
| Max Flow (l/min) | 7 | ||
| Viscosities (cSt) | 7.4 To 420 | ||
Product Description

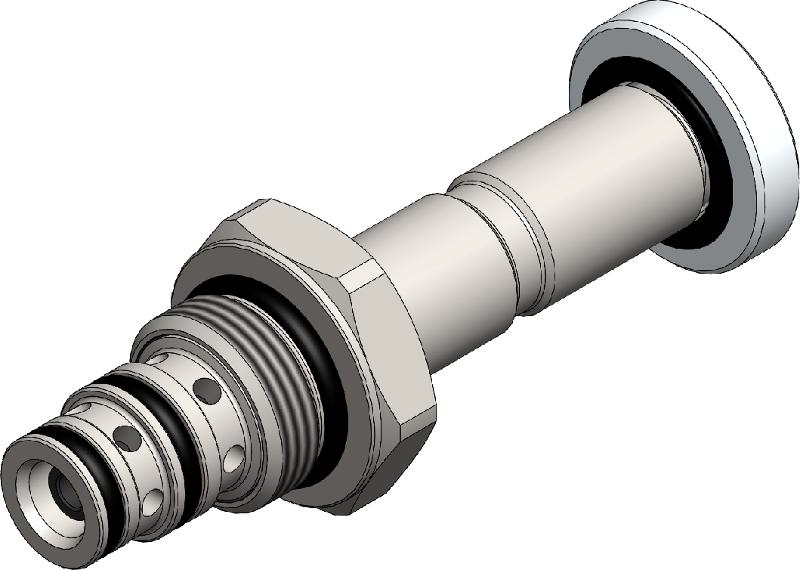

A screw-in hydraulic directional cartridge valve with a spool-type design and direct-acting operation, controlled by a solenoid. This 3-way, 2-position valve functions as follows:
- When de-energized, it permits flow in both directions between ports 1 and 3, while port 2 is closed.
- When energized, it allows bidirectional flow between ports 1 and 2, with port 3 blocked.
The valve features a streamlined flow path, resulting in minimal pressure loss.
