VIS Hydraulics SVP0.S08
Product specifications
| Product Attributes | Test method | ||
|---|---|---|---|
| Weight (Kg) | 0.14 | ||
| Installation torque (Nm) | 35 To 40 | ||
| Filtration | 20/18/15 ISO 4406 (maximum filtration admitted) | ||
| Orientation | Norestrictions | ||
| Oil Testing Conditions | ISOVG46cSt | ||
| Fluid | Mineral | ||
| Pressure Attributes | Test method | ||
|---|---|---|---|
| Max Pressure (Bar) | 250 | ||
| Flow Attributes | Test method | ||
|---|---|---|---|
| Max Flow (l/min) | 20 | ||
| Viscosities (cSt) | 7.4 To 420 | ||
Product Description

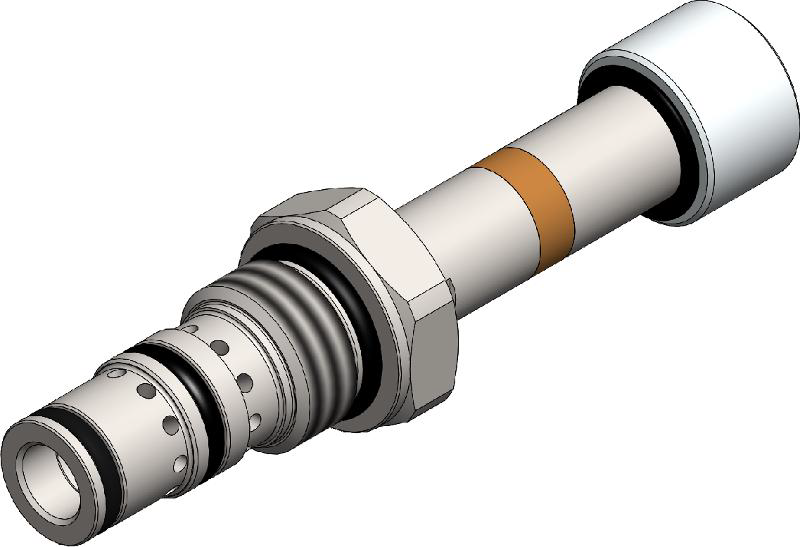

A solenoid valve operated, 3 way 2 positions, spool type, direct acting, screw-in hydraulic directional cartridge valve. In the deenergizedmode, the SVP0.S08 allows flow bidirectionally between ports 2 and 3, while blocking flow at 1. In the energized mode,flow is allowed between ports 2 and 1, while flow is blocked at 3. The rigid design using a 1-piece body contributes to minimize theeffect of eccentricities in cavity and provides great reliability. Low pressure drop thanks to optimized flow path.
