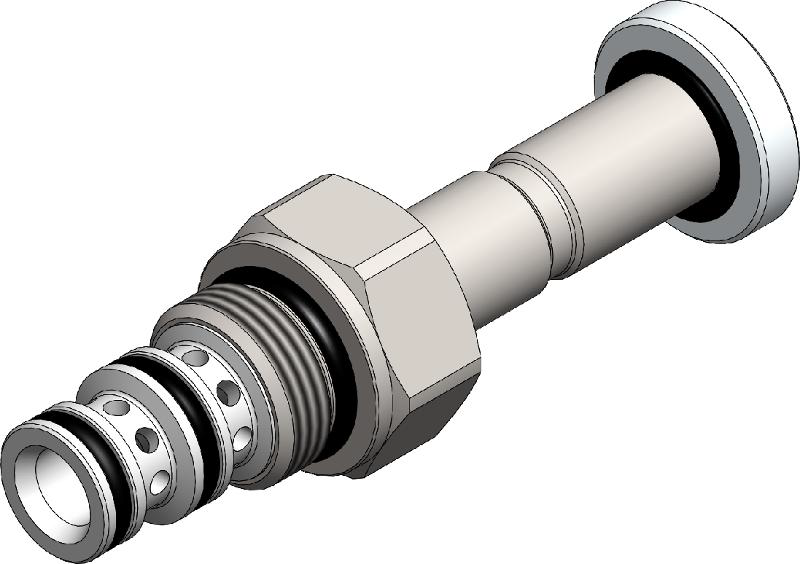

VIS Hydraulics SVP4.S08
Product specifications
| Product Attributes | Test method | ||
|---|---|---|---|
| Weight (Kg) | 0.13 | ||
| Installation torque (Nm) | 25 To 30 | ||
| Filtration | 20/18/15 ISO 4406 (maximum filtration admitted) | ||
| Orientation | Norestrictions | ||
| Oil Testing Conditions | ISOVG46cSt | ||
| Fluid | Mineral | ||
| Pressure Attributes | Test method | ||
|---|---|---|---|
| Max Pressure (Bar) | 230 | ||
| Flow Attributes | Test method | ||
|---|---|---|---|
| Max Flow (l/min) | 7 | ||
| Viscosities (cSt) | 7.4 To 420 | ||
Product Description
A solenoid valve operated, 3 way 2 positions, spool type, direct acting, screw-in hydraulic directional cartridge valve. In the deenergized mode, the SVP4.S08 allows flow bidirectionally between ports 2 and 3, while blocking flow at 1. In the energized mode, bidirectional flow is allowed between ports 1 and 2, while flow is blocked at 3. Even if port 1 may be fully pressurized, it is not intended to be used as the inlet. Low pressure drop thanks to optimized flow path.
