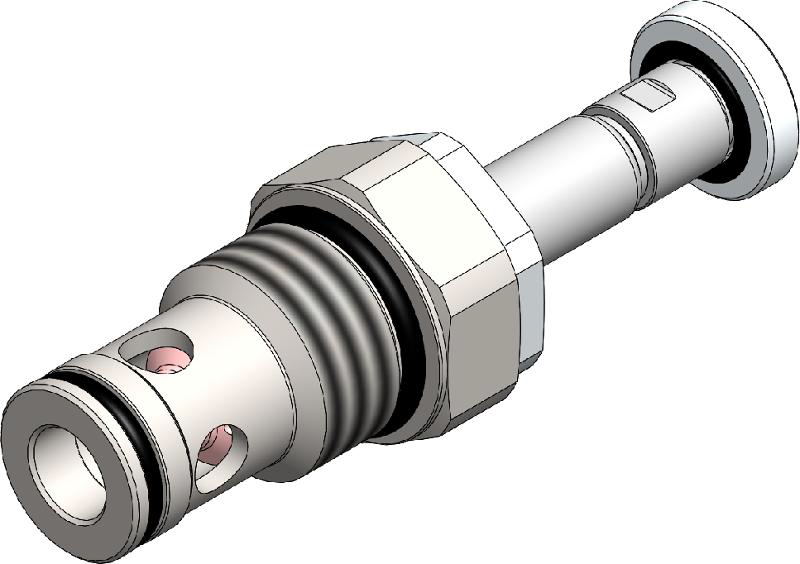

VIS Hydraulics SVT0.S12
Product specifications
| Product Attributes | Test method | ||
|---|---|---|---|
| Weight (Kg) | 0.25 | ||
| Installation torque (Nm) | 85 To 95 | ||
| Filtration | 20/18/15 ISO 4406 (maximum filtration admitted) | ||
| Orientation | Norestrictions | ||
| Oil Testing Conditions | ISOVG46cSt | ||
| Fluid | Mineral | ||
| Pressure Attributes | Test method | ||
|---|---|---|---|
| Max Pressure (Bar) | 350 | ||
| Flow Attributes | Test method | ||
|---|---|---|---|
| Max Flow (l/min) | 150 | ||
| Viscosities (cSt) | 7.4 To 420 | ||
Product Description
A solenoid valve operated, 2-way 2-positions, normally closed, piloted poppet type, screw-in cartridge valve. Typically used as ablocking or load holding device for high pressure circuits. When the coil is de-energized, the SVT0.S12 acts as check valve allowingfree flow from 1 to 2, while blocking from 2 to 1. When the coil is energized the poppet lifts and opens both the 2 to 1 and 1 to 2 flowpaths. The rigid design using a 1-piece body contributes to minimize the effect of eccentricities in cavity and provides greatreliability. Low pressure drop thanks to optimized flow path.
