VIS Hydraulics IRV0.M20
Product specifications
| Product Attributes | Test method | ||
|---|---|---|---|
| Weight (Kg) | 0.09 | ||
| Installation torque (Nm) | 45 To 50 | ||
| Filtration | 20/18/15 ISO 4406 (maximum filtration admitted) | ||
| Orientation | Norestrictions | ||
| Oil Testing Conditions | ISOVG46cSt | ||
| Fluid | Mineral | ||
| Pressure Attributes | Test method | ||
|---|---|---|---|
| Max Pressure (Bar) | 420 | ||
| Flow Attributes | Test method | ||
|---|---|---|---|
| Max Flow (l/min) | 75 | ||
| Viscosities (cSt) | 7.4 To 420 | ||
Product Description

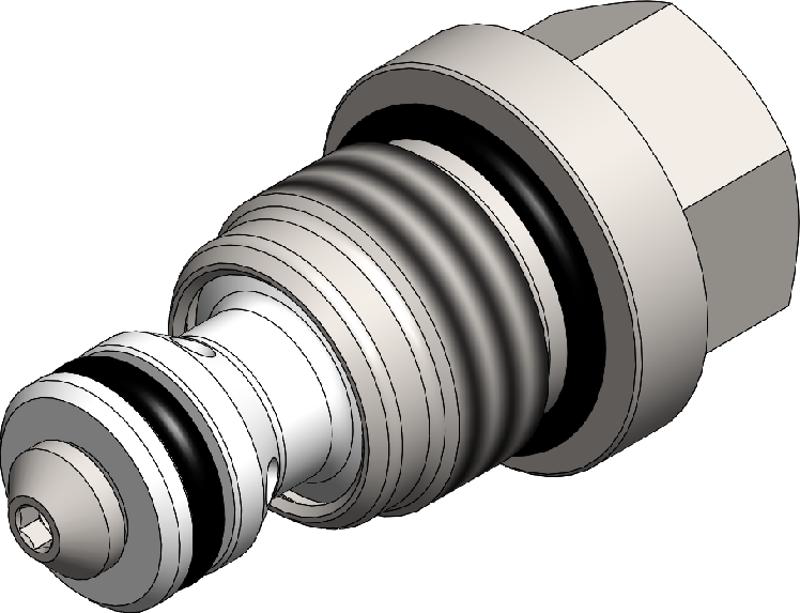

The IRV valve provides in one compact insert cartridge the typical function of shock relief valve, side-in nose-exhaust. When thepressure at the high pressure inlet (2) reaches the valve setting, the valve starts to open to tank (1). The pressure rise is very lowthanks to the smart deflector design. Flow passage in the opposite direction (1 to 2) is blocked. High precision machiningguarantees quick response to load changes, limited hysteresis and reduced internal leakage.
