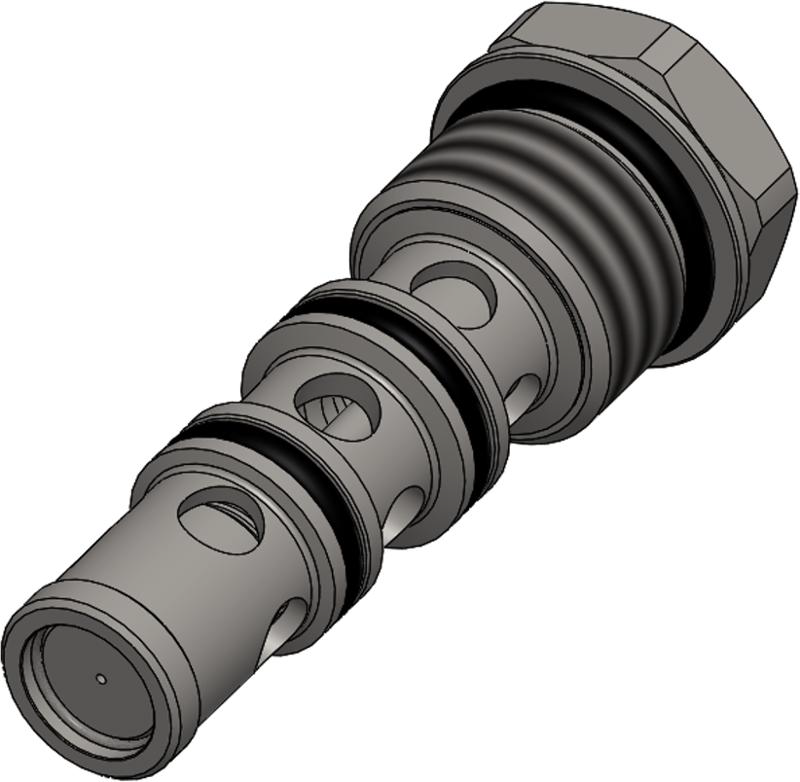

VIS Hydraulics SHI0.S10
Product specifications
| Product Attributes | Test method | ||
|---|---|---|---|
| Weight (Kg) | 0.12 | ||
| Installation torque (Nm) | 50 To 60 | ||
| Filtration | 20/18/15 ISO 4406 (maximum filtration admitted) | ||
| Orientation | Norestrictions | ||
| Oil Testing Conditions | ISOVG46cSt | ||
| Fluid | Mineral | ||
| Pressure Attributes | Test method | ||
|---|---|---|---|
| Max Pressure (Bar) | 250 | ||
| Flow Attributes | Test method | ||
|---|---|---|---|
| Max Flow (l/min) | 15 | ||
| Viscosities (cSt) | 7.4 To 420 | ||
| Internal Leakage @ 10 bar (cc/minute) | 1 | ||
Product Description
Shut-off valves for hydraulic system with one inlet (3) and two outlets (2-4). All ports are connected in neutral. When pressure atone of the two load ports (2-4) exceeds the other, the poppets shuttle to allow bi-directional flow between other two ports, whilethe load port with higher pressure is shut-off. NOTE: Port 1 should be blocked.
