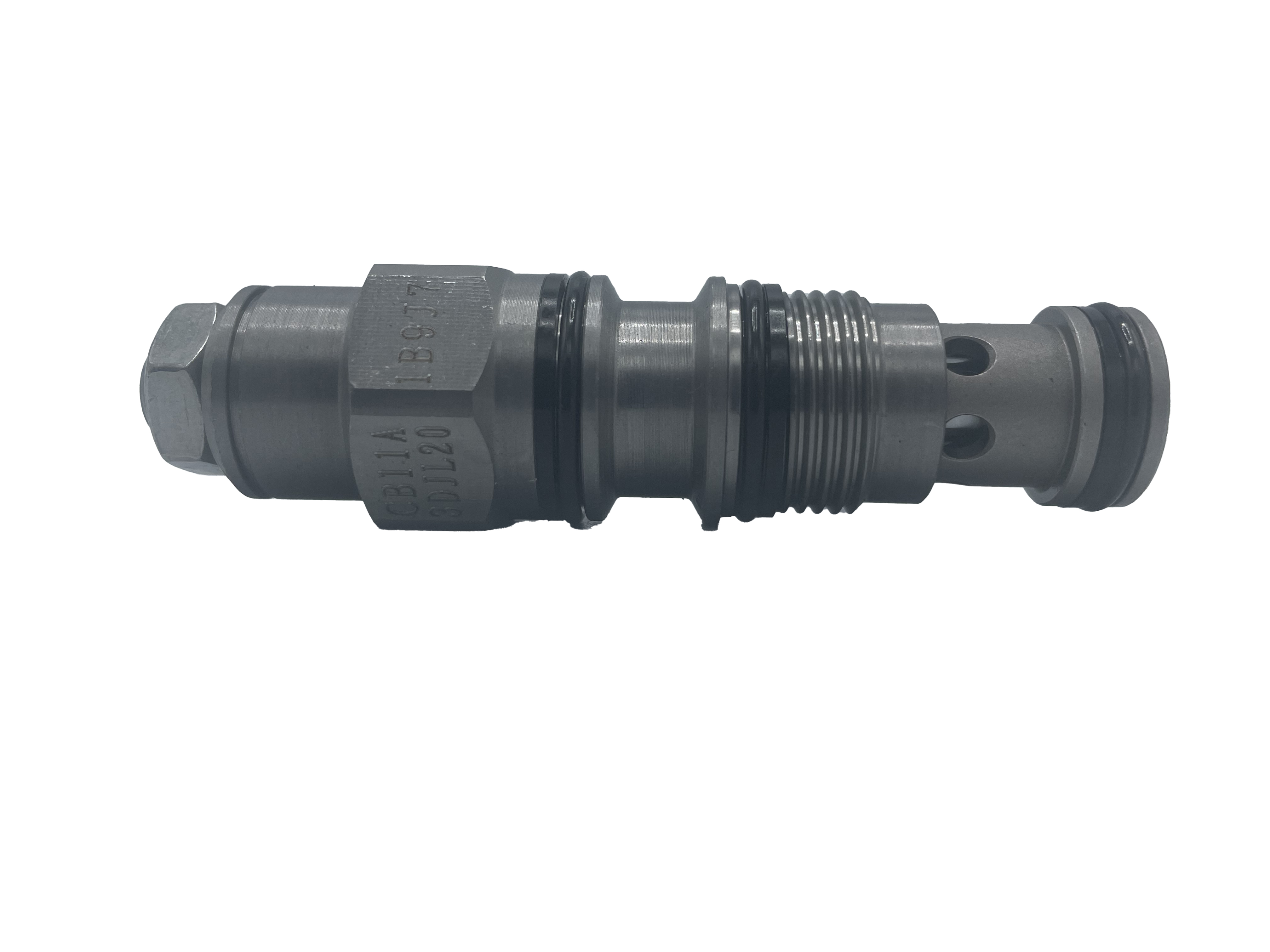

Winner Hydraulics CB-11A-X-Y-Z-20

Winner Hydraulics CB-11A-X-Y-Z-20
  • Winner Hydraulics CB-11A-X-Y-Z-20
  • Winner Hydraulics CB-11A-X-Y-Z-20
  • Winner Hydraulics CB-11A-X-Y-Z-20

Product specifications

Product Attributes Test method
Weight (Kg) 0.15
Installation torque (Nm) 40 To 50
Cavity Tooling 11A-3
Pressure Attributes Test method
Max Pressure (Bar) 350
Flow Attributes Test method
Rated Flow (l/min) 20

Product Description

Winner Hydraulics CB-11A-X-Y-Z-20
Product Options (Z)
Springs (Y)
SUN Code
Datasheet Application
CB-11A-3B-C-C-20 Stainless Steel Tamper Resistant Cover.140 to 350 bar (210 bar Standard Setting)
CB-11A-3B-C-L-20 Leakproof hex. socket screw.140 to 350 bar (210 bar Standard Setting)
CB-11A-3B-D-C-20 Stainless Steel Tamper Resistant Cover.70 to 175 bar (140 bar Standard Setting)
CB-11A-3B-D-L-20 Leakproof hex. socket screw.70 to 175 bar (140 bar Standard Setting)
CB-11A-3B-J-C-20 Stainless Steel Tamper Resistant Cover.140 to 350 bar (210 bar Standard Setting)
CB-11A-3B-J-L-20 Leakproof hex. socket screw.140 to 350 bar (210 bar Standard Setting)
CB-11A-3B-K-C-20 Stainless Steel Tamper Resistant Cover.70 to 175 bar (140 bar Standard Setting)
CB-11A-3B-K-L-20 Leakproof hex. socket screw.70 to 175 bar (140 bar Standard Setting)
CB-11A-3D-C-C-20 Stainless Steel Tamper Resistant Cover.140 to 350 bar (210 bar Standard Setting)
CB-11A-3D-C-L-20 (alternative for SUN CBBG-LCN) Leakproof hex. socket screw.140 to 350 bar (210 bar Standard Setting)CBBG-LCN
CB-11A-3D-D-C-20 Stainless Steel Tamper Resistant Cover.70 to 175 bar (140 bar Standard Setting)
CB-11A-3D-D-L-20 (alternative for SUN CBBG-LDN) Leakproof hex. socket screw.70 to 175 bar (140 bar Standard Setting)CBBG-LDN
CB-11A-3D-J-C-20 Stainless Steel Tamper Resistant Cover.140 to 350 bar (210 bar Standard Setting)
CB-11A-3D-J-L-20 (alternative for SUN CBBG-LJN) Leakproof hex. socket screw.140 to 350 bar (210 bar Standard Setting)CBBG-LJN
CB-11A-3D-K-C-20 Stainless Steel Tamper Resistant Cover.70 to 175 bar (140 bar Standard Setting)
CB-11A-3D-K-L-20 (alternative for SUN CBBG-LKN) Leakproof hex. socket screw.70 to 175 bar (140 bar Standard Setting)CBBG-LKN

Request the 3D drawing

Working this component into your own design? Request the STEP file and we'll send it straight to your inbox


Request 3D drawing
