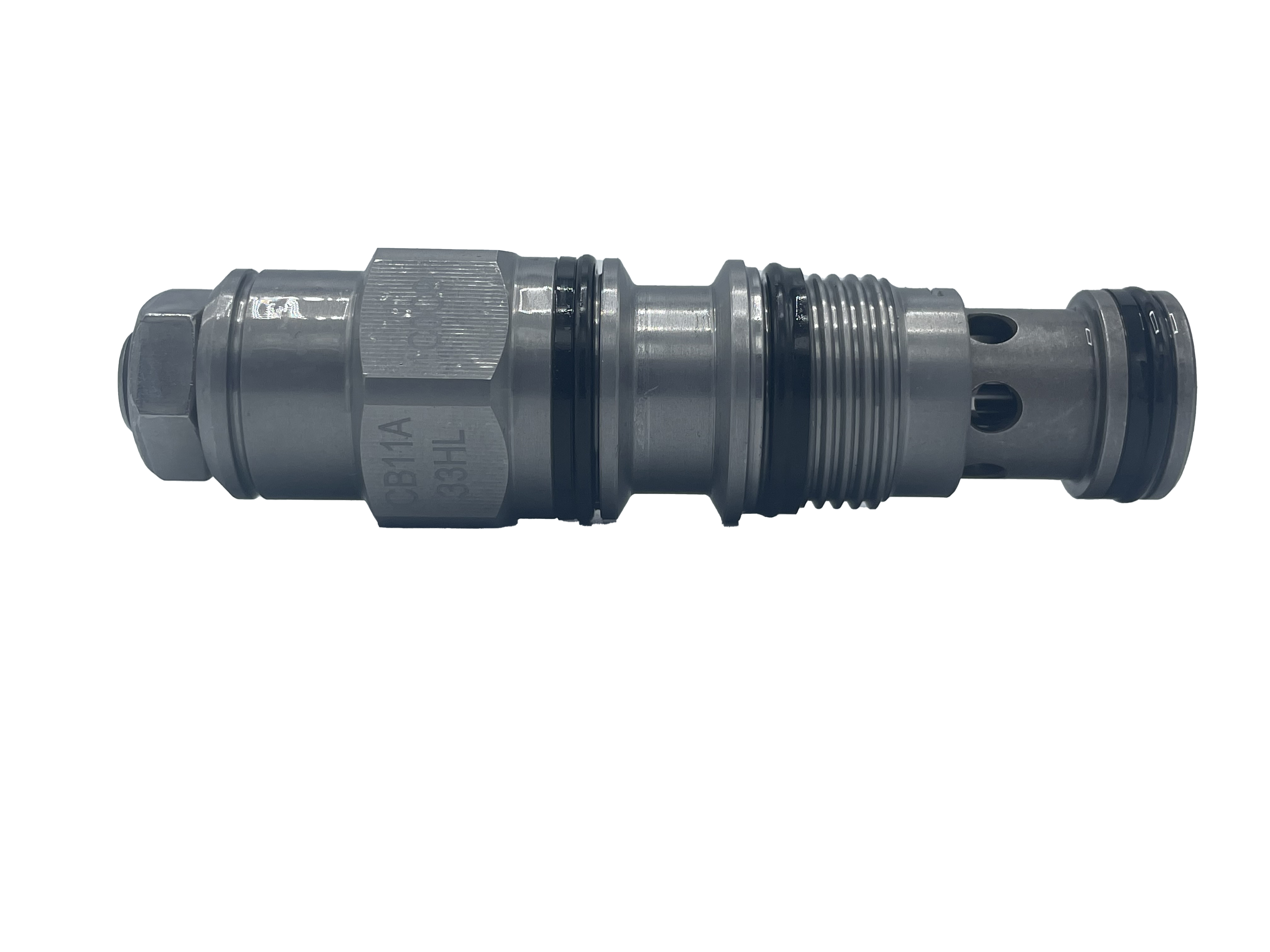

Winner Hydraulics CB-11A-X-Y-Z

Back to Winner Hydraulics
Winner Hydraulics CB-11A-X-Y-Z
  • Winner Hydraulics CB-11A-X-Y-Z
  • Winner Hydraulics CB-11A-X-Y-Z
  • Winner Hydraulics CB-11A-X-Y-Z
  • Winner Hydraulics CB-11A-X-Y-Z

Product specifications

Product Attributes Test method
Weight (Kg) 0.15
Installation torque (Nm) 40 To 50
Cavity Tooling 11A-3
Pressure Attributes Test method
Max Pressure (Bar) 280
Flow Attributes Test method
Rated Flow (l/min) 60

Product Description

Winner Hydraulics CB-11A-X-Y-Z

Product Options (Z)
Springs (Y)
SUN Code
Datasheet Application
CB-11A-23-A-C Stainless Steel Tamper Resistant Cover.70 to 280 bar (210 bar Standard Setting)
CB-11A-30-C-C Stainless Steel Tamper Resistant Cover.140 to 350 bar (210 bar Standard Setting)
CB-11A-30-C-L (alternative for SUN CBCH-LCN) Leakproof hex. socket screw.140 to 350 bar (210 bar Standard Setting)CBCH-LCN
CB-11A-30-C-LP Leakproof hex. socket screw. With Stainless Steel External Components140 to 350 bar (210 bar Standard Setting)
CB-11A-30-D-C Stainless Steel Tamper Resistant Cover.70 to 175 bar (140 bar Standard Setting)
CB-11A-30-D-L (alternative for SUN CBCH-LDN) Leakproof hex. socket screw.70 to 175 bar (140 bar Standard Setting)CBCH-LDN
CB-11A-30-D-LP Leakproof hex. socket screw. With Stainless Steel External Components70 to 175 bar (140 bar Standard Setting)
CB-11A-30-J-C Stainless Steel Tamper Resistant Cover.140 to 350 bar (210 bar Standard Setting)
CB-11A-30-J-L (alternative for SUN CBCH-LJN) Leakproof hex. socket screw.140 to 350 bar (210 bar Standard Setting)CBCH-LJN
CB-11A-30-J-LP Leakproof hex. socket screw. With Stainless Steel External Components140 to 350 bar (210 bar Standard Setting)
CB-11A-30-K-C Stainless Steel Tamper Resistant Cover.70 to 175 bar (140 bar Standard Setting)
CB-11A-30-K-L (alternative for SUN CBCH-LKN) Leakproof hex. socket screw.70 to 175 bar (140 bar Standard Setting)CBCH-LKN
CB-11A-30-K-LP Leakproof hex. socket screw. With Stainless Steel External Components70 to 175 bar (140 bar Standard Setting)
CB-11A-33-170-N Non-adjustable 2.0 bar Cracking Pressure155 to 185 bar
CB-11A-33-170-Q Non-adjustable 0.3 bar Cracking Pressure155 to 185 bar
CB-11A-33-220-N Non-adjustable 2.0 bar Cracking Pressure200 to 245 bar
CB-11A-33-220-Q Non-adjustable 0.3 bar Cracking Pressure200 to 245 bar
CB-11A-33-A-C Stainless Steel Tamper Resistant Cover.70 to 280 bar (210 bar Standard Setting)
CB-11A-33-A-L (alternative for SUN CBCA-LAN) Leakproof hex. socket screw.70 to 280 bar (210 bar Standard Setting)CBCA-LAN
CB-11A-33-A-LP Leakproof hex. socket screw. With Stainless Steel External Components70 to 280 bar (210 bar Standard Setting)
CB-11A-33-A-T Three-winged Handknob Kit.70 to 280 bar (210 bar Standard Setting)
CB-11A-33-B-C Stainless Steel Tamper Resistant Cover.25 to 105 bar (70 bar Standard Setting)
CB-11A-33-B-L (alternative for SUN CBCA-LBN) Leakproof hex. socket screw.25 to 105 bar (70 bar Standard Setting)CBCA-LBN
CB-11A-33-B-LP Leakproof hex. socket screw. With Stainless Steel External Components25 to 105 bar (70 bar Standard Setting)
CB-11A-33-B-T Three-winged Handknob Kit.25 to 105 bar (70 bar Standard Setting)
CB-11A-33-C-C Stainless Steel Tamper Resistant Cover.140 to 350 bar (210 bar Standard Setting)
CB-11A-33-C-L Leakproof hex. socket screw.140 to 350 bar (210 bar Standard Setting)
CB-11A-33-C-LP Leakproof hex. socket screw. With Stainless Steel External Components140 to 350 bar (210 bar Standard Setting)
CB-11A-33-D-C Stainless Steel Tamper Resistant Cover.70 to 175 bar (140 bar Standard Setting)
CB-11A-33-D-L Leakproof hex. socket screw.70 to 175 bar (140 bar Standard Setting)
CB-11A-33-D-LP Leakproof hex. socket screw. With Stainless Steel External Components70 to 175 bar (140 bar Standard Setting)
CB-11A-33-E-C Stainless Steel Tamper Resistant Cover.16 to 55 bar (25 bar Standard Setting)
CB-11A-33-E-L Leakproof hex. socket screw.16 to 55 bar (25 bar Standard Setting)
CB-11A-33-E-LP Leakproof hex. socket screw. With Stainless Steel External Components16 to 55 bar (25 bar Standard Setting)
CB-11A-33-E-T Three-winged Handknob Kit.16 to 55 bar (25 bar Standard Setting)
CB-11A-33-H-C Stainless Steel Tamper Resistant Cover.70 to 280 bar (210 bar Standard Setting)
CB-11A-33-H-L (alternative for SUN CBCA-LHN) Leakproof hex. socket screw.70 to 280 bar (210 bar Standard Setting)CBCA-LHN
CB-11A-33-H-LP (alternative for SUN CBCA-LHN/AP) Leakproof hex. socket screw. With Stainless Steel External Components70 to 280 bar (210 bar Standard Setting)CBCA-LHN/AP
CB-11A-33-H-T Three-winged Handknob Kit.70 to 280 bar (210 bar Standard Setting)
CB-11A-33-I-C Stainless Steel Tamper Resistant Cover.25 to 105 bar (70 bar Standard Setting)
CB-11A-33-I-L (alternative for SUN CBCA-LIN) Leakproof hex. socket screw.25 to 105 bar (70 bar Standard Setting)CBCA-LIN
CB-11A-33-I-LP (alternative for SUN CBCA-LIN/AP) Leakproof hex. socket screw. With Stainless Steel External Components25 to 105 bar (70 bar Standard Setting)CBCA-LIN/AP
CB-11A-33-I-T Three-winged Handknob Kit.25 to 105 bar (70 bar Standard Setting)
CB-11A-33-J-C Stainless Steel Tamper Resistant Cover.140 to 350 bar (210 bar Standard Setting)
CB-11A-33-J-L Leakproof hex. socket screw.140 to 350 bar (210 bar Standard Setting)
CB-11A-33-J-LP Leakproof hex. socket screw. With Stainless Steel External Components140 to 350 bar (210 bar Standard Setting)
CB-11A-33-K-C Stainless Steel Tamper Resistant Cover.70 to 175 bar (140 bar Standard Setting)
CB-11A-33-K-L Leakproof hex. socket screw.70 to 175 bar (140 bar Standard Setting)
CB-11A-33-K-LP Leakproof hex. socket screw. With Stainless Steel External Components70 to 175 bar (140 bar Standard Setting)
CB-11A-34-C-C Stainless Steel Tamper Resistant Cover.140 to 350 bar (210 bar Standard Setting)
CB-11A-34-C-L (alternative for SUN CBCG-LCN) Leakproof hex. socket screw.140 to 350 bar (210 bar Standard Setting)CBCG-LCN
CB-11A-34-C-LP Leakproof hex. socket screw. With Stainless Steel External Components140 to 350 bar (210 bar Standard Setting)
CB-11A-34-D-C Stainless Steel Tamper Resistant Cover.70 to 175 bar (140 bar Standard Setting)
CB-11A-34-D-L (alternative for SUN CBCG-LDN) Leakproof hex. socket screw.70 to 175 bar (140 bar Standard Setting)CBCG-LDN
CB-11A-34-D-LP Leakproof hex. socket screw. With Stainless Steel External Components70 to 175 bar (140 bar Standard Setting)
CB-11A-34-J-C Stainless Steel Tamper Resistant Cover.140 to 350 bar (210 bar Standard Setting)
CB-11A-34-J-L (alternative for SUN CBCG-LJN) Leakproof hex. socket screw.140 to 350 bar (210 bar Standard Setting)CBCG-LJN
CB-11A-34-J-LP Leakproof hex. socket screw. With Stainless Steel External Components140 to 350 bar (210 bar Standard Setting)
CB-11A-34-K-C Stainless Steel Tamper Resistant Cover.70 to 175 bar (140 bar Standard Setting)
CB-11A-34-K-L (alternative for SUN CBCG-LKN) Leakproof hex. socket screw.70 to 175 bar (140 bar Standard Setting)CBCG-LKN
CB-11A-34-K-LP Leakproof hex. socket screw. With Stainless Steel External Components70 to 175 bar (140 bar Standard Setting)
CB-11A-3A-A-C Stainless Steel Tamper Resistant Cover.70 to 280 bar (210 bar Standard Setting)
CB-11A-3A-A-L (alternative for SUN CBCB-LAN) Leakproof hex. socket screw.70 to 280 bar (210 bar Standard Setting)CBCB-LAN
CB-11A-3A-A-LP Leakproof hex. socket screw. With Stainless Steel External Components70 to 280 bar (210 bar Standard Setting)
CB-11A-3A-A-T Three-winged Handknob Kit.70 to 280 bar (210 bar Standard Setting)
CB-11A-3A-B-C Stainless Steel Tamper Resistant Cover.25 to 105 bar (70 bar Standard Setting)
CB-11A-3A-B-L (alternative for SUN CBCB-LBN) Leakproof hex. socket screw.25 to 105 bar (70 bar Standard Setting)CBCB-LBN
CB-11A-3A-B-LP Leakproof hex. socket screw. With Stainless Steel External Components25 to 105 bar (70 bar Standard Setting)
CB-11A-3A-B-T Three-winged Handknob Kit.25 to 105 bar (70 bar Standard Setting)
CB-11A-3A-E-C Stainless Steel Tamper Resistant Cover.16 to 55 bar (25 bar Standard Setting)
CB-11A-3A-E-L Leakproof hex. socket screw.16 to 55 bar (25 bar Standard Setting)
CB-11A-3A-E-LP Leakproof hex. socket screw. With Stainless Steel External Components16 to 55 bar (25 bar Standard Setting)
CB-11A-3A-E-T Three-winged Handknob Kit.16 to 55 bar (25 bar Standard Setting)
CB-11A-3A-H-C Stainless Steel Tamper Resistant Cover.70 to 280 bar (210 bar Standard Setting)
CB-11A-3A-H-L (alternative for SUN CBCB-LHN) Leakproof hex. socket screw.70 to 280 bar (210 bar Standard Setting)CBCB-LHN
CB-11A-3A-H-LP Leakproof hex. socket screw. With Stainless Steel External Components70 to 280 bar (210 bar Standard Setting)
CB-11A-3A-H-T Three-winged Handknob Kit.70 to 280 bar (210 bar Standard Setting)
CB-11A-3A-I-C Stainless Steel Tamper Resistant Cover.25 to 105 bar (70 bar Standard Setting)
CB-11A-3A-I-L (alternative for SUN CBCB-LIN) Leakproof hex. socket screw.25 to 105 bar (70 bar Standard Setting)CBCB-LIN
CB-11A-3A-I-LP Leakproof hex. socket screw. With Stainless Steel External Components25 to 105 bar (70 bar Standard Setting)
CB-11A-3A-I-T Three-winged Handknob Kit.25 to 105 bar (70 bar Standard Setting)
CB-11A-3B-C-C Stainless Steel Tamper Resistant Cover.140 to 350 bar (210 bar Standard Setting)
CB-11A-3B-C-L (alternative for SUN CBCL-LCN) Leakproof hex. socket screw.140 to 350 bar (210 bar Standard Setting)CBCL-LCN
CB-11A-3B-C-LP Leakproof hex. socket screw. With Stainless Steel External Components140 to 350 bar (210 bar Standard Setting)
CB-11A-3B-D-C Stainless Steel Tamper Resistant Cover.70 to 175 bar (140 bar Standard Setting)
CB-11A-3B-D-L (alternative for SUN CBCL-LDN) Leakproof hex. socket screw.70 to 175 bar (140 bar Standard Setting)CBCL-LDN
CB-11A-3B-D-LP Leakproof hex. socket screw. With Stainless Steel External Components70 to 175 bar (140 bar Standard Setting)
CB-11A-3B-J-C Stainless Steel Tamper Resistant Cover.140 to 350 bar (210 bar Standard Setting)
CB-11A-3B-J-L (alternative for SUN CBCL-LJN) Leakproof hex. socket screw.140 to 350 bar (210 bar Standard Setting)CBCL-LJN
CB-11A-3B-J-LP Leakproof hex. socket screw. With Stainless Steel External Components140 to 350 bar (210 bar Standard Setting)
CB-11A-3B-K-C Stainless Steel Tamper Resistant Cover.70 to 175 bar (140 bar Standard Setting)
CB-11A-3B-K-L (alternative for SUN CBCL-LKN) Leakproof hex. socket screw.70 to 175 bar (140 bar Standard Setting)CBCL-LKN
CB-11A-3B-K-LP Leakproof hex. socket screw. With Stainless Steel External Components70 to 175 bar (140 bar Standard Setting)
CB-11A-3C-A-C Stainless Steel Tamper Resistant Cover.70 to 280 bar (210 bar Standard Setting)
CB-11A-3C-A-L Leakproof hex. socket screw.70 to 280 bar (210 bar Standard Setting)
CB-11A-3C-A-LP Leakproof hex. socket screw. With Stainless Steel External Components70 to 280 bar (210 bar Standard Setting)
CB-11A-3C-A-T Three-winged Handknob Kit.70 to 280 bar (210 bar Standard Setting)
CB-11A-3C-B-C Stainless Steel Tamper Resistant Cover.25 to 105 bar (70 bar Standard Setting)
CB-11A-3C-B-L Leakproof hex. socket screw.25 to 105 bar (70 bar Standard Setting)
CB-11A-3C-B-LP Leakproof hex. socket screw. With Stainless Steel External Components25 to 105 bar (70 bar Standard Setting)
CB-11A-3C-B-T Three-winged Handknob Kit.25 to 105 bar (70 bar Standard Setting)
CB-11A-3C-E-C Stainless Steel Tamper Resistant Cover.16 to 55 bar (25 bar Standard Setting)
CB-11A-3C-E-L Leakproof hex. socket screw.16 to 55 bar (25 bar Standard Setting)
CB-11A-3C-E-LP Leakproof hex. socket screw. With Stainless Steel External Components16 to 55 bar (25 bar Standard Setting)
CB-11A-3C-E-T Three-winged Handknob Kit.16 to 55 bar (25 bar Standard Setting)
CB-11A-3C-H-C Stainless Steel Tamper Resistant Cover.70 to 280 bar (210 bar Standard Setting)
CB-11A-3C-H-L Leakproof hex. socket screw.70 to 280 bar (210 bar Standard Setting)
CB-11A-3C-H-LP Leakproof hex. socket screw. With Stainless Steel External Components70 to 280 bar (210 bar Standard Setting)
CB-11A-3C-H-T Three-winged Handknob Kit.70 to 280 bar (210 bar Standard Setting)
CB-11A-3C-I-C Stainless Steel Tamper Resistant Cover.25 to 105 bar (70 bar Standard Setting)
CB-11A-3C-I-L Leakproof hex. socket screw.25 to 105 bar (70 bar Standard Setting)
CB-11A-3C-I-LP Leakproof hex. socket screw. With Stainless Steel External Components25 to 105 bar (70 bar Standard Setting)
CB-11A-3C-I-T Three-winged Handknob Kit.25 to 105 bar (70 bar Standard Setting)
CB-11A-3D-240-N Non-adjustable 2.0 bar Cracking Pressure220 to 260 bar
CB-11A-3D-240-Q Non-adjustable 0.3 bar Cracking Pressure220 to 260 bar
CB-11A-3D-270-N Non-adjustable 2.0 bar Cracking Pressure245 to 290 bar
CB-11A-3D-270-Q Non-adjustable 0.3 bar Cracking Pressure245 to 290 bar
CB-11A-3D-315-N Non-adjustable 2.0 bar Cracking Pressure285 to 340 bar
CB-11A-3D-315-Q Non-adjustable 0.3 bar Cracking Pressure285 to 340 bar
CB-11A-3D-350-N Non-adjustable 2.0 bar Cracking Pressure325 to 390 bar
CB-11A-3D-350-Q Non-adjustable 0.3 bar Cracking Pressure325 to 390 bar
CB-11A-3D-C-C Stainless Steel Tamper Resistant Cover.140 to 350 bar (210 bar Standard Setting)
CB-11A-3D-C-L Leakproof hex. socket screw.140 to 350 bar (210 bar Standard Setting)
CB-11A-3D-C-LP Leakproof hex. socket screw. With Stainless Steel External Components140 to 350 bar (210 bar Standard Setting)
CB-11A-3D-D-C Stainless Steel Tamper Resistant Cover.70 to 175 bar (140 bar Standard Setting)
CB-11A-3D-D-L Leakproof hex. socket screw.70 to 175 bar (140 bar Standard Setting)
CB-11A-3D-D-LP Leakproof hex. socket screw. With Stainless Steel External Components70 to 175 bar (140 bar Standard Setting)
CB-11A-3D-J-C Stainless Steel Tamper Resistant Cover.140 to 350 bar (210 bar Standard Setting)
CB-11A-3D-J-L Leakproof hex. socket screw.140 to 350 bar (210 bar Standard Setting)
CB-11A-3D-J-LP Leakproof hex. socket screw. With Stainless Steel External Components140 to 350 bar (210 bar Standard Setting)
CB-11A-3D-K-C Stainless Steel Tamper Resistant Cover.70 to 175 bar (140 bar Standard Setting)
CB-11A-3D-K-L Leakproof hex. socket screw.70 to 175 bar (140 bar Standard Setting)
CB-11A-3D-K-LP Leakproof hex. socket screw. With Stainless Steel External Components70 to 175 bar (140 bar Standard Setting)
CB-11A-23-A-L Leakproof hex. socket screw.70 to 280 bar (210 bar Standard Setting)
CB-11A-23-B-C Stainless Steel Tamper Resistant Cover.25 to 105 bar (70 bar Standard Setting)
CB-11A-23-B-L Leakproof hex. socket screw.25 to 105 bar (70 bar Standard Setting)
CB-11A-23-C-C Stainless Steel Tamper Resistant Cover.140 to 350 bar (210 bar Standard Setting)
CB-11A-23-C-L Leakproof hex. socket screw.140 to 350 bar (210 bar Standard Setting)
CB-11A-23-E-C Stainless Steel Tamper Resistant Cover.16 to 55 bar (25 bar Standard Setting)
CB-11A-23-E-L Leakproof hex. socket screw.16 to 55 bar (25 bar Standard Setting)
CB-11A-23-H-C Stainless Steel Tamper Resistant Cover.70 to 280 bar (210 bar Standard Setting)
CB-11A-23-H-L Leakproof hex. socket screw.70 to 280 bar (210 bar Standard Setting)
CB-11A-23-I-C Stainless Steel Tamper Resistant Cover.25 to 105 bar (70 bar Standard Setting)
CB-11A-23-I-L Leakproof hex. socket screw.25 to 105 bar (70 bar Standard Setting)

Request the 3D drawing

Working this component into your own design? Request the STEP file and we'll send it straight to your inbox


Request 3D drawing
