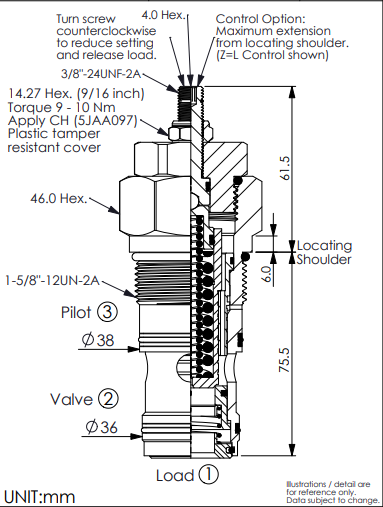

Winner Hydraulics CB-20WS-X-Y-Z

Product specifications

Pressure Attributes			Test method
Max Pressure (Bar)		350

Flow Attributes			Test method
Rated Flow (l/min)		300

Product	Options (Z)	Springs (Y)

CB-20WS-33-J-L	Leakproof hex. socket screw.	70 to 350 bar (210 bar Standard Setting Standard Setting made at 4.8 litres/min)
CB-20WS-38-J-L	Leakproof hex. socket screw.	70 to 350 bar (210 bar Standard Setting Standard Setting made at 4.8 litres/min)

Working this component into your own design? Request the STEP file and we'll send it straight to your inbox
