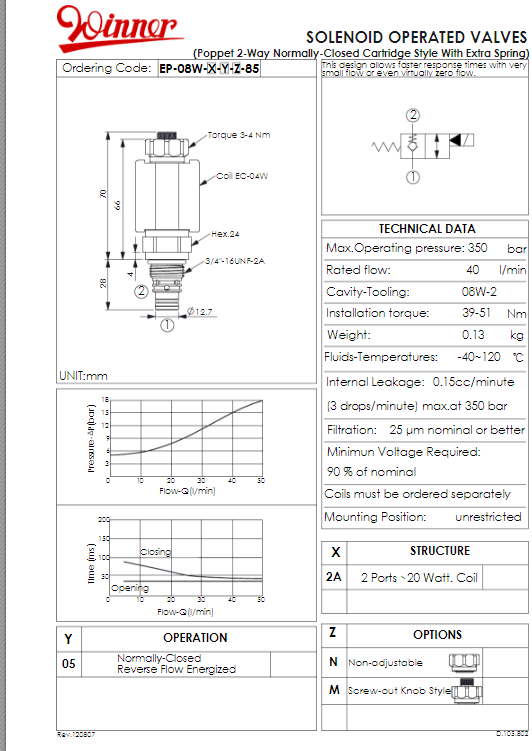

Winner Hydraulics EP-08W-X-Y-Z-85
Product specifications
| Product Attributes | Test method | ||
|---|---|---|---|
| Weight (Kg) | 0.13 | ||
| Installation torque (Nm) | 39 To 51 | ||
| Cavity Tooling | 08W-2 | ||
| Filtration (µm) | 25 | ||
| Pressure Attributes | Test method | ||
|---|---|---|---|
| Max Pressure (Bar) | 350 | ||
| Flow Attributes | Test method | ||
|---|---|---|---|
| Rated Flow (l/min) | 40 | ||
| Fluids Temperatures (°C) | -40 To 120 | ||
| Internal Leakage (cc/minute) | 0.15 | ||
Product Description
Winner Hydraulics EP-08W-X-Y-Z-85
Request the 3D drawing
Working this component into your own design? Request the STEP file and we'll send it straight to your inbox
