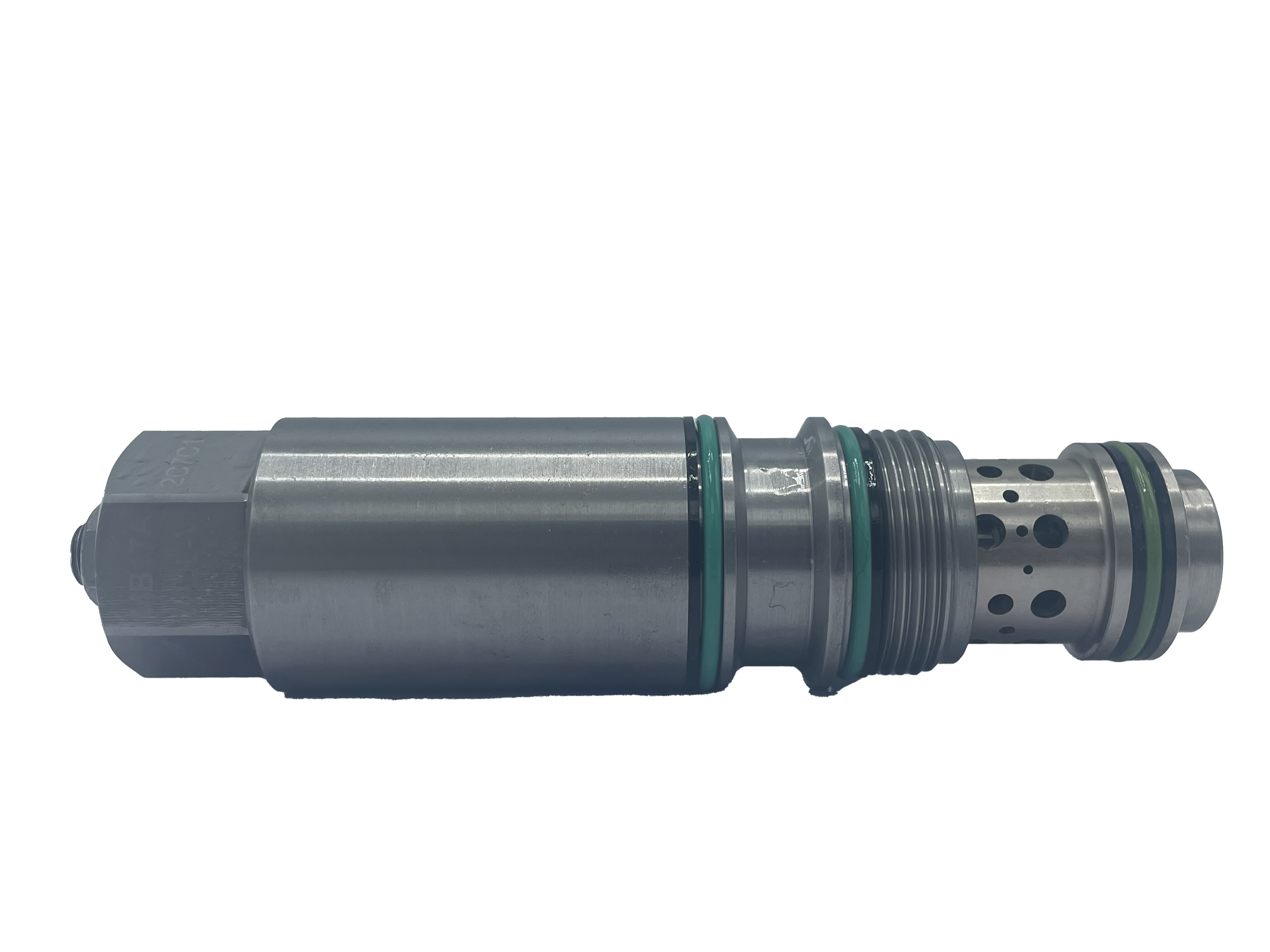

Winner Hydraulics MB-17A-X-Y-Z

Winner Hydraulics MB-17A-X-Y-Z
  • Winner Hydraulics MB-17A-X-Y-Z
  • Winner Hydraulics MB-17A-X-Y-Z
  • Winner Hydraulics MB-17A-X-Y-Z
  • Winner Hydraulics MB-17A-X-Y-Z

Product specifications

Product Attributes Test method
Installation torque (Nm) 200 To 215
Cavity Tooling 17A-3
Pressure Attributes Test method
Max Pressure (Bar) 350
Flow Attributes Test method
Rated Flow (l/min) 240

Product Description

Winner Hydraulics MB-17A-X-Y-Z
Product Options (Z)
Springs (Y)
SUN Code
Datasheet Application
MB-17A-3A-H-L (alternative for SUN MBGB-LHN) Leakproof hex. socket screw.70 to 280 bar (210 bar Standard Setting)MBGB-LHN
MB-17A-3A-I-L Leakproof hex. socket screw.25 to 105 bar (70 bar Standard Setting)
MB-17A-3A-J-L (alternative for SUN MBGB-LJN) Leakproof hex. socket screw.140 to 350 bar (210 bar Standard Setting)MBGB-LJN
MB-17A-3C-H-L (alternative for SUN MBGA-LHN) Leakproof hex. socket screw.70 to 280 bar (210 bar Standard Setting)MBGA-LHN
MB-17A-3C-I-L Leakproof hex. socket screw.25 to 105 bar (70 bar Standard Setting) 0
MB-17A-3C-J-L (alternative for SUN MBGA-LJN) Leakproof hex. socket screw.140 to 350 bar (210 bar Standard Setting)MBGA-LJN
MB-17A-3D-H-L (alternative for SUN MBGG-LHN) Leakproof hex. socket screw.70 to 280 bar (210 bar Standard Setting)MBGG-LHN
MB-17A-3D-I-L Leakproof hex. socket screw.25 to 105 bar (70 bar Standard Setting)
MB-17A-3D-J-L (alternative for SUN MBGG-LJN) Leakproof hex. socket screw.140 to 350 bar (210 bar Standard Setting)MBGG-LJN
MB-17A-3N-0050-N (alternative for SUN MBGM-XEN) Not Adjustable5 barMBGM-XEN
MB-17A-3N-0105-N (alternative for SUN MBGM-XGN) Not Adjustable10.5 barMBGM-XGN
MB-17A-3N-0200-N (alternative for SUN MBGM-XIN) Not Adjustable20 barMBGM-XIN
MB-17A-3N-0330-N (alternative for SUN MBGM-XKN) Not Adjustable33 barMBGM-XKN
MB-17A-3N-0367-N (alternative for SUN MBGM-XMN) Not Adjustable36.7 barMBGM-XMN

Request the 3D drawing

Working this component into your own design? Request the STEP file and we'll send it straight to your inbox


Request 3D drawing
