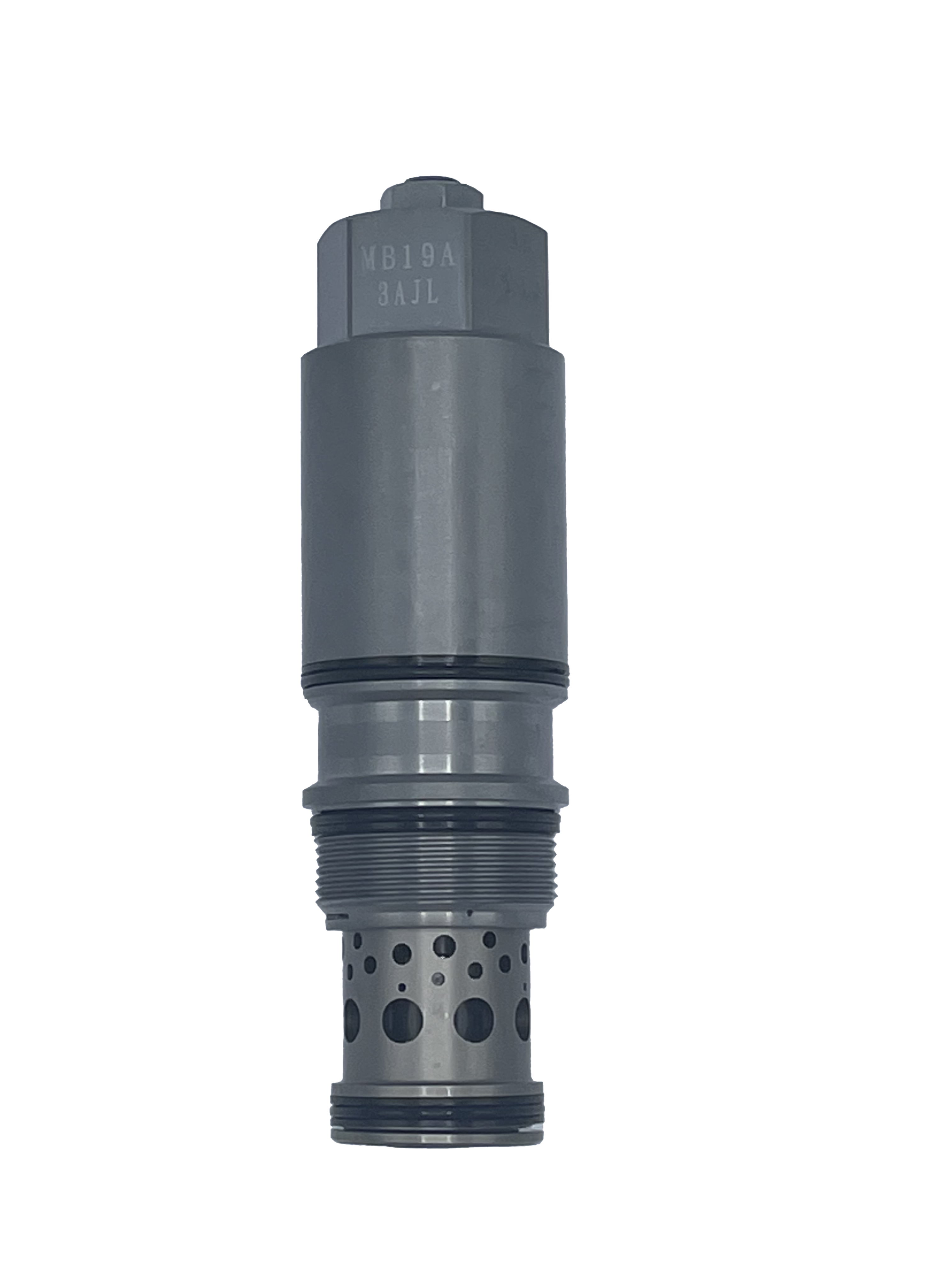

Winner Hydraulics MB-19A-X-Y-Z

Winner Hydraulics MB-19A-X-Y-Z
  • Winner Hydraulics MB-19A-X-Y-Z
  • Winner Hydraulics MB-19A-X-Y-Z
  • Winner Hydraulics MB-19A-X-Y-Z
  • Winner Hydraulics MB-19A-X-Y-Z
  • Winner Hydraulics MB-19A-X-Y-Z

Product specifications

Product Attributes Test method
Installation torque (Nm) 475 To 500
Cavity Tooling 19A-3
Pressure Attributes Test method
Max Pressure (Bar) 350
Flow Attributes Test method
Rated Flow (l/min) 480

Product Description

Winner Hydraulics MB-19A-X-Y-Z
Product Options (Z)
Springs (Y)
SUN Code
Datasheet Application
MB-19A-3A-H-L (alternative for SUN MBIB-LHN) Leakproof hex. socket screw.70 to 280 bar (210 bar Standard Setting)MBIB-LHN
MB-19A-3A-I-L Leakproof hex. socket screw.25 to 105 bar (70 bar Standard Setting)
MB-19A-3A-J-L (alternative for SUN MBIB-LJN) Leakproof hex. socket screw.140 to 350 bar (210 bar Standard Setting)MBIB-LJN
MB-19A-3C-H-L (alternative for SUN MBIA-LHN) Leakproof hex. socket screw.70 to 280 bar (210 bar Standard Setting)MBIA-LHN
MB-19A-3C-I-L Leakproof hex. socket screw.25 to 105 bar (70 bar Standard Setting) 0
MB-19A-3C-J-L (alternative for SUN MBIA-LJN) Leakproof hex. socket screw.140 to 350 bar (210 bar Standard Setting)MBIA-LJN
MB-19A-3D-H-L (alternative for SUN MBIG-LHN) Leakproof hex. socket screw.70 to 280 bar (210 bar Standard Setting)MBIG-LHN
MB-19A-3D-I-L Leakproof hex. socket screw.25 to 105 bar (70 bar Standard Setting)
MB-19A-3D-J-L (alternative for SUN MBIG-LJN) Leakproof hex. socket screw.140 to 350 bar (210 bar Standard Setting)MBIG-LJN
MB-19A-3N-0050-N (alternative for SUN MBIM-XEN) Not Adjustable5 barMBIM-XEN
MB-19A-3N-0105-N (alternative for SUN MBIM-XGN) Not Adjustable10.5 barMBIM-XGN
MB-19A-3N-0140-N (alternative for SUN MBIM-XHN) Not Adjustable14 barMBIM-XHN
MB-19A-3N-0200-N (alternative for SUN MBIM-XIN) Not Adjustable20 barMBIM-XIN
MB-19A-3N-0330-N (alternative for SUN MBIM-XKN) Not Adjustable33 barMBIM-XKN
MB-19A-3N-0367-N (alternative for SUN MBIM-XMN) Not Adjustable36.7 barMBIM-XMN

Request the 3D drawing

Working this component into your own design? Request the STEP file and we'll send it straight to your inbox


Request 3D drawing
