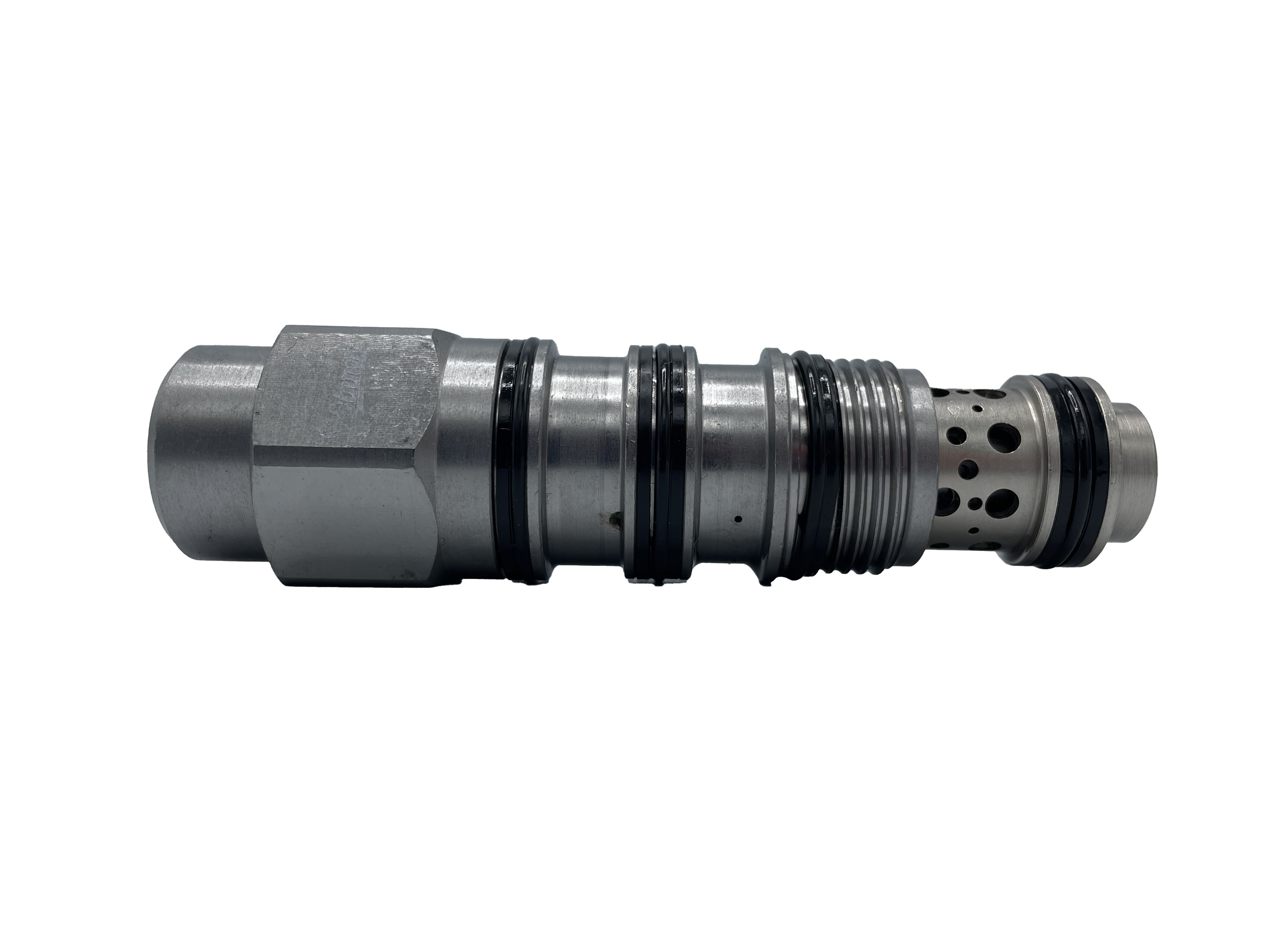

Winner Hydraulics MW-22A-X-Y-Z

Back to Winner Hydraulics

Winner Hydraulics MW-22A-X-Y-Z

Product specifications

Product Attributes			Test method
Installation torque (Nm)		60 To 70
Cavity Tooling		22A-4

Pressure Attributes			Test method
Max Pressure (Bar)		350

Flow Attributes			Test method
Rated Flow (l/min)		120

Product Description

Winner Hydraulics MW-22A-X-Y-Z

Product	Options (Z)	Springs (Y)	SUN Code	Datasheet	Application

MW-22A-4A-H-L (alternative for SUN MWEB-LHN)	Leakproof hex. socket screw.	70 to 280 bar (210 bar Standard Setting)	MWEB-LHN
MW-22A-4A-J-L (alternative for SUN MWEB-LJN)	Leakproof hex. socket screw.	140 to 350 bar (210 bar Standard Setting)	MWEB-LJN
MW-22A-4C-H-L (alternative for SUN MWEA-LHN)	Leakproof hex. socket screw.	70 to 280 bar (210 bar Standard Setting)	MWEA-LHN
MW-22A-4C-J-L (alternative for SUN MWEA-LJN)	Leakproof hex. socket screw.	140 to 350 bar (210 bar Standard Setting)	MWEA-LJN
MW-22A-4D-H-L (alternative for SUN MWEG-LHN)	Leakproof hex. socket screw.	70 to 280 bar (210 bar Standard Setting)	MWEG-LHN
MW-22A-4D-J-L (alternative for SUN MWEG-LJN)	Leakproof hex. socket screw.	140 to 350 bar (210 bar Standard Setting)	MWEG-LJN
MW-22A-4N-0050-N (alternative for SUN MWEM-XEN)	Not Adjustable	5 bar	MWEM-XEN
MW-22A-4N-0105-N (alternative for SUN MWEM-XGN)	Not Adjustable	10.5 bar	MWEM-XGN
MW-22A-4N-0140-N (alternative for SUN MWEM-XHN)	Not Adjustable	14 bar	MWEM-XHN
MW-22A-4N-0200-N (alternative for SUN MWEM-XIN)	Not Adjustable	20 bar	MWEM-XIN
MW-22A-4N-0330-N (alternative for SUN MWEM-XKN)	Not Adjustable	33 bar	MWEM-XKN
MW-22A-4N-0367-N (alternative for SUN MWEM-XMN)	Not Adjustable	36.7 bar	MWEM-XMN

Related Documentation

For more information, download the documents below

DatasheetDownload

Request the 3D drawing

Working this component into your own design? Request the STEP file and we'll send it straight to your inbox

Request 3D drawing
