Winner Hydraulics MW-23A-X-Y-Z

Product specifications

Product Attributes			Test method
Installation torque (Nm)		200 To 2015
Cavity Tooling		23A-4

Pressure Attributes			Test method
Max Pressure (Bar)		350

Flow Attributes			Test method
Rated Flow (l/min)		240

Product Description

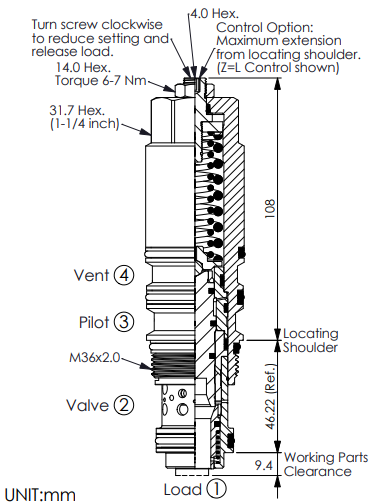

Winner Hydraulics MW-23A-X-Y-Z

Product	Options (Z)	Springs (Y)	SUN Code	Datasheet	Application

MW-23A-4A-H-L (alternative for SUN MWGB-LHN)	Leakproof hex. socket screw.	70 to 280 bar (210 bar Standard Setting)	MWGB-LHN
MW-23A-4A-J-L (alternative for SUN MWGA-LJN)	Leakproof hex. socket screw.	140 to 350 bar (210 bar Standard Setting)	MWGA-LJN
MW-23A-4C-H-L (alternative for SUN MWGA-LHN)	Leakproof hex. socket screw.	70 to 280 bar (210 bar Standard Setting)	MWGA-LHN
MW-23A-4C-J-L	Leakproof hex. socket screw.	140 to 350 bar (210 bar Standard Setting)
MW-23A-4D-H-L (alternative for SUN MWGG-LHN)	Leakproof hex. socket screw.	70 to 280 bar (210 bar Standard Setting)	MWGG-LHN
MW-23A-4D-J-L (alternative for SUN MWGG-LJN)	Leakproof hex. socket screw.	140 to 350 bar (210 bar Standard Setting)	MWGG-LJN
MW-23A-4N-0050-N (alternative for SUN MWGM-XEN)	Not Adjustable	5 bar	MWGM-XEN
MW-23A-4N-0105-N (alternative for SUN MWGM-XGN)	Not Adjustable	10.5 bar	MWGM-XGN
MW-23A-4N-0200-N (alternative for SUN MWGM-XIN)	Not Adjustable	20 bar	MWGM-XIN
MW-23A-4N-0330-N (alternative for SUN MWGM-XKN)	Not Adjustable	33 bar	MWGM-XKN
MW-23A-4N-0367-N (alternative for SUN MWGM-XMN)	Not Adjustable	36.7 bar	MWGM-XMN

Related Documentation

For more information, download the documents below

Request the 3D drawing

Working this component into your own design? Request the STEP file and we'll send it straight to your inbox

Request 3D drawing
